| Brand Name: | Sinotruk HOWO |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

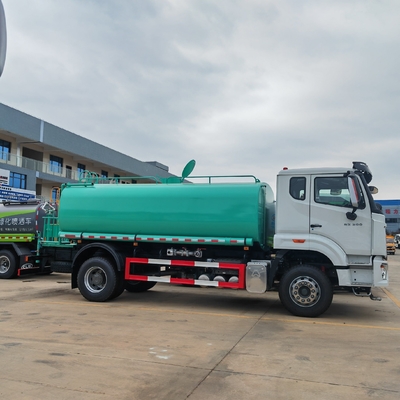

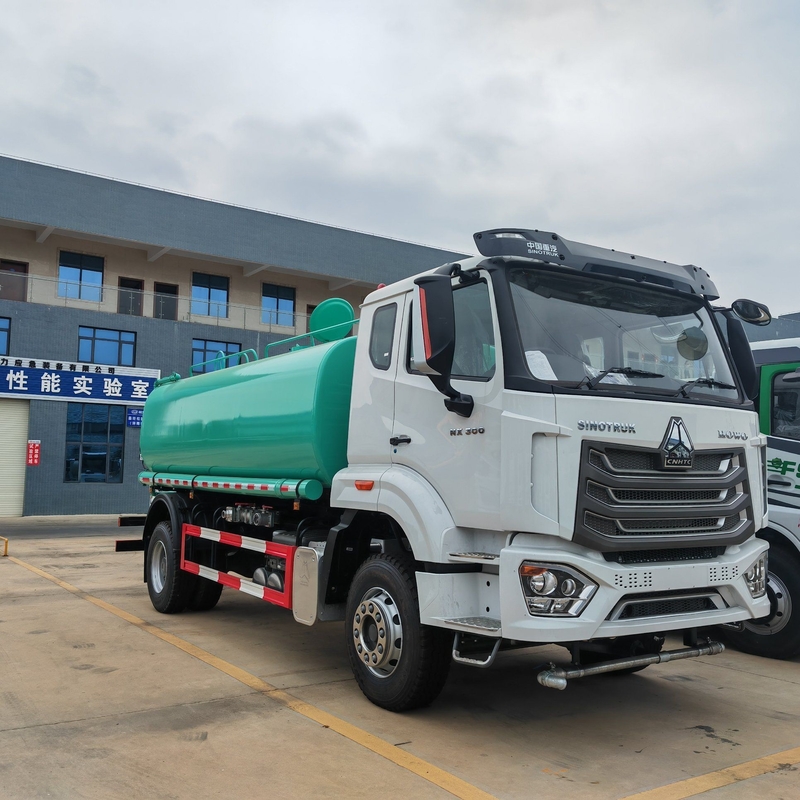

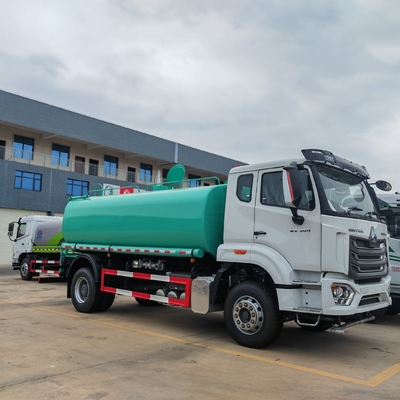

Sinotruk Howo NX300 Transportation Water Sprinkler Tanker Truck is a specialized heavy-duty vehicle designed primarily for water transport, dust suppression, road cleaning, and various municipal or construction site applications.
The Sinotruk Howo NX300 water tanker is a versatile vehicle used across multiple sectors:

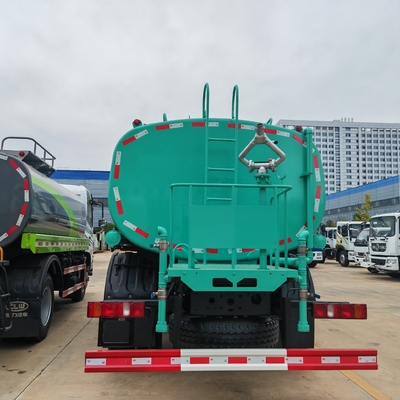

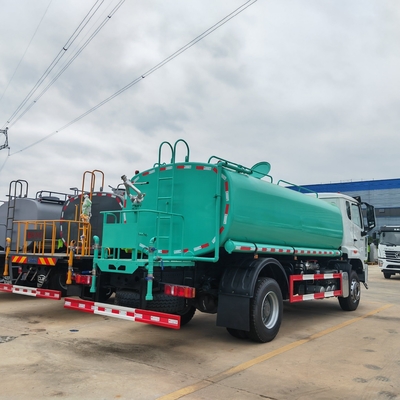

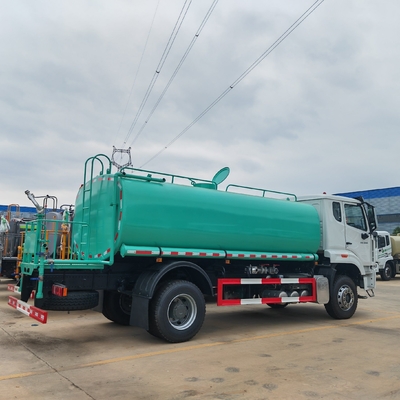

The water tanker truck is mainly used for water transportation, road sprinkling, plant watering, etc. The water tank truck is consisted of chassis, Q235 water tank, front, side and rear sprinkler nozzle. Also , the rear of the water truck is equipped antiskid platform with water cannon. The water cannon can rotate 360 degree and the water flow can be adjusted to mist, light rain, moderate rain, heavy rain, etc. The spraying width of chengli water tank truck is more than 15m and the cannon range is more than 25m.
| Item | unit | parameter | ||
| Vehicle model | CLW5111GSST3 Water Tank Truck | |||
| Chassis model | EQ1110GLJ | |||
| Overall dimensions | mm | 7500×2470×3050 | ||
| Fact cubage | L | 10000 | ||
| Mass in working order | kg | Appro×6800 | ||
| Body internal dimensions | mm | 4200/2000/1150 | ||
| Wheel base | 3950+1350 | |||
| F/R track base | 1900/1800 | |||
| Approach/departure angle | ° | 27/13 | ||
| Exhaust/kw | ml/kw | 5900/125 | ||
| Max speed | km/h | 85 | ||
| Tire specification | 9.00-20 | Engine type | 400 | |
| Traction system | 4×2 | transmission | 6-speed with over drive | |
| Number of axles | 2 | Electric system | 24v | |
| Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | |
| Equipment | Equipped with front(rear,side)sprinkler(sprinkling width>14m ) Equipped with rear working platform with water cannon (range>28m) Equipped with CLW pump(suction lift>6m) Equipped with fire valve,water valve,and filter gauze |
|||
| Engine | DongFeng Cummins Environmental Protection,supercharge,diesel engine | |||
| Production cycle | 10-15 days | |||
| Warranty | 12 month,from the date of supply | |||
| Feature | Detail |
| Model Series | Sinotruk HOWO NX |
| Chassis Drive Type | Commonly 6×4 (three axles, two driving) or 4×2 |
| Cab Type | HOWO NX Cab (often with a single sleeper and A/C) |
| Engine | Model: Varies (e.g., SINOTRUK WD615 series, MC07, or Weichai WP series) |
| Horsepower: Varies, commonly 266 HP to 336 HP | |
| Emission Standard: Varies (e.g., Euro II, Euro V) | |
| Transmission | Manual, typically 10 Forward & 2 Reverse gears (e.g., HW series) |
| Tank Capacity | Highly variable, commonly from 10,000 to 25,000 Liters (10 to 25 CBM) |
| Tank Material | Typically Carbon Steel (Q235), with a thickness around 4 to 5 mm |
| Pump | Equipped with a dedicated water pump (e.g., 80QZB(F)−60/90S model) |
| Suction Lift: ≥6 to 7 meters | |
| Flow Rate: Typically around 1,000 Liters/minute or 60 m3/h | |
| Sprinkling System | Front flushing nozzles, rear and side sprinklers/spray nozzles |
| Sprinkling Width: ≥14 meters | |
| Water Cannon | Equipped on a rear working platform, often 360∘ rotatable |
| Range: ≥28 meters (adjustable spray patterns like columnar or vaporific) | |
| Tires | Various options, such as 12.00R20 Radial tires or 295/80R22.5 |
| GVW (Gross Vehicle Weight) | Varies, often around 18,000 kg to 26,000 kg depending on configuration |
| Curb Weight | Varies, often around 7,460 kg to 14,000 kg depending on tank volume |
| Overall Dimensions | Varies significantly with configuration (e.g., 10,415×2,500×3,340 mm for a 6×4 model) |
1. Company Profile and Scale
Headquarters: Suizhou City, Hubei Province, China. Suizhou is known as the "Capital of China's Special Purpose Vehicles."
Establishment: The core entity, Chengli Special Automobile Co., Ltd., was established in 2004.
Scale: It is a large-scale enterprise, often cited as one of China's Top 500 Private Enterprises. The group operates over 40 member factories and professional workshops across several industrial parks.
Capacity: The company has a significant annual production capacity, estimated to be around 100,000 special vehicles per year.
Certifications: The company holds numerous quality and management system certifications, including ISO 9001, ISO 14001, OHSAS 18001, and China Compulsory Certification (CCC), as well as specialized licenses for pressure vessels (e.g., A2, C2, C3) and fire trucks.
Market: Their products are sold across China and exported globally to over 30 countries and regions in Africa, Southeast Asia, the Middle East, Central Asia, and South America.
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
1. Global Reach
Total Export Countries: Chengli's products are exported to more than 50 countries and regions globally.
Key Export Regions: Their main international markets are:
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
