| Brand Name: | ISUZU Giga |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

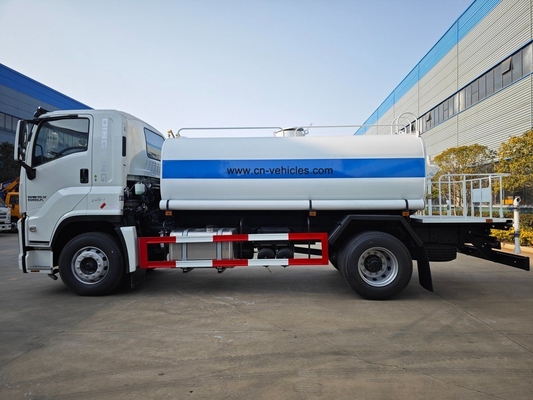

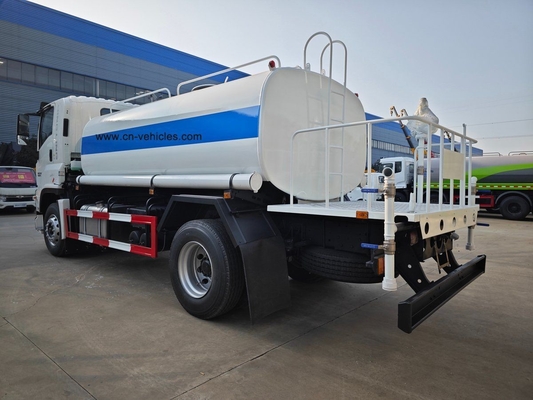

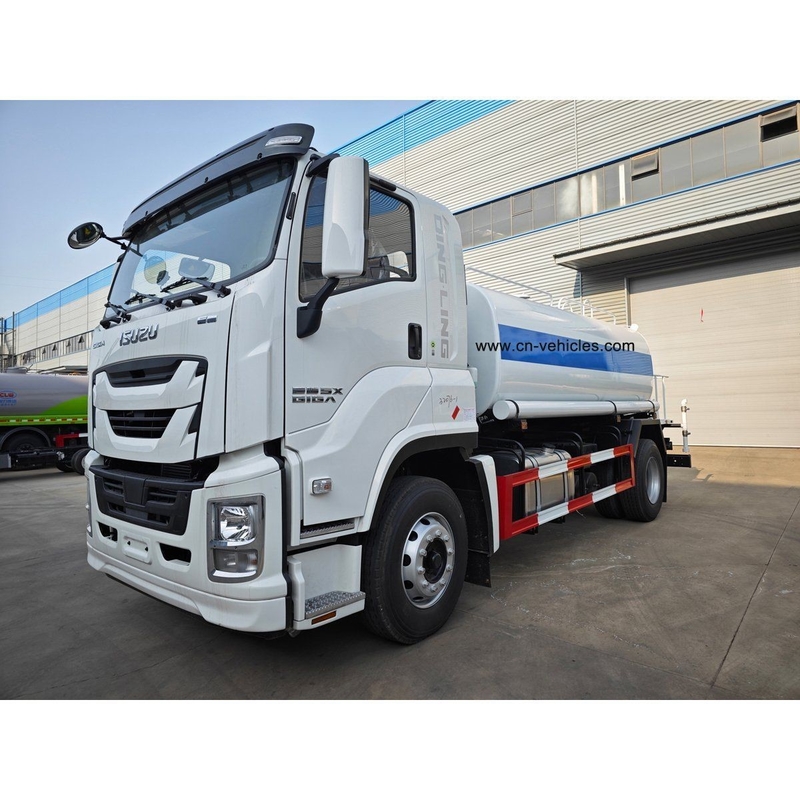

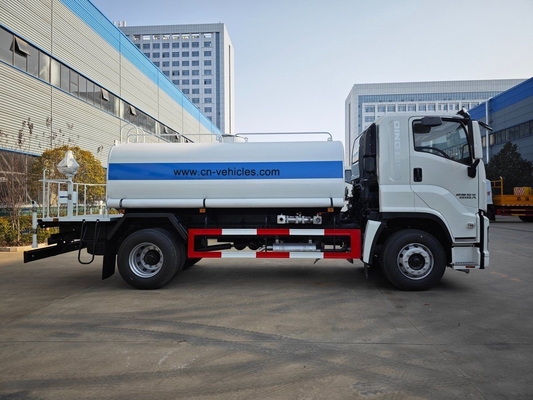

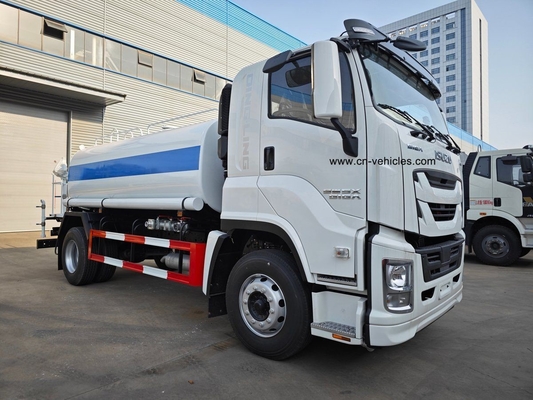

The ISUZU Giga 240HP water tank tanker sprinkler bowser cleaning truck is a heavy-duty specialized vehicle, though the specific 240HP engine model and associated tank capacity can vary between manufacturers who build the superstructure on the ISUZU Giga chassis.
Here is a summary of the typical characteristics and features of an ISUZU Giga water bowser/sprinkler truck, often available in a similar power range:
| Parameter | Specification (Typical Range) | Notes |
|---|---|---|
| Chassis | ISUZU Giga VC61 or similar | Varies by specific model and market. |
| Engine Horsepower | 240 HP (around 176 kW) | As requested by the model name. |
| Engine Model | Often 6UZ1-TCG50 or a similar 6-cylinder engine. | Other models like 6HK1 are also used on ISUZU trucks, but 6UZ1 is common for GIGA. |
| Cylinder Type | 6 cylinders, in-line, diesel, turbocharged, inter-cooled, water-cooled. | |
| Max Torque | Specific torque for a 240HP engine is not uniformly published but generally High Torque for the Giga range. | Higher HP models often have torque exceeding 1000 Nm. |
| Displacement | Approximately 7.8 L to 9.8 L (7900 mL to 9839 mL) | Depends on the exact 240HP engine variant. |
| Emission Standard | Varies (often Euro III, IV, or V/VI depending on the market and year). | |
| Drive Type | Typically 4x2 (6-wheeler) or 6x4 for larger capacity models. | 4x2 is common for mid-range capacities. |
| Transmission | Manual, e.g., FAST 8-speed or 12-speed manual gearbox. | |
| Water Tank Capacity | Ranges from 10,000 Liters to 18,000 Liters | A common capacity for a 240HP chassis is around 12,000 L to 15,000 L (approx. 3,170 to 3,960 US gallons). |
| Tank Material | High-quality Carbon Steel (Q235/Q345) with anti-corrosion treatment. | Stainless Steel (e.g., SS304) is often an option for drinking water or corrosive media. |
| Gross Vehicle Weight (GVW) | Approx. 18,000 kg to 22,000 kg | Varies with tank capacity and axle configuration. |
| Curb Weight | Approx. 7,500 kg to 9,000 kg | |
| Overall Dimensions (L x W x H) | Approx. 8500-9000 x 2500 x 3200-3300 mm | Varies by body builder. |
| Sprinkling System | Water Pump | China Famous Brand (e.g., Weilong), high-flow self-priming centrifugal. |
| Pump Flow Rate | Typically 60 m³/h (1,000 L/min) or more. | |
| Pump Head (Lift) | Approx. 90 meters. | |
| Suction Depth | ≥6−7 meters | Self-priming capability. |
| Sprinkling Width (Front/Side) | ≥14 meters | Achieved with front duck-bill or fan-shaped nozzles and side sprays. |
| Water Cannon/Gun Range | ≥28 meters (often up to 35 meters) | High-pressure water cannon mounted on the rear working platform, 360° rotatable, adjustable spray pattern (heavy rain, drizzle, mist). |
| Spraying Nozzles | Front flushing nozzles, rear spraying nozzles, side spraying nozzles. | |
| Other Features | Rear working platform with ladder, Gravity flow valve, Fire hydrant joint/inlet, Tool box. | |
| ISUZU GIGA 4X2 350HP Water Tanker Truck 20KL | |||
|---|---|---|---|
| 1.Cab & Chassis | |||
| Standard | Option | ||
| Chassis make | ISUZU GIGA, 6*4,4500MM wheelbase; | ||
| Engine | 6UZ1-TCG51,Euro V, 350 HP; 9.839L displacement | ||
| Cab | GIGA flat roof, 2 seats+ 1 bed ,with A/C; central lock, electric window glass, color white | air seats, air suspension cabin, Chrome grill face; | |
| Gearbox | ZF8S2030TO,Manual type , 8 forward & 1 reverse | ||
| PTO | Included | ||
| Brake system | With ABS | ||
| Tire | 315/80R22.5,10+1 pieces; | 12.00R22.5 | |
| Wheel cover | Plastic made, without brush | ||
| Exhaust pipe | In front , under front bumper, spark extinguisher | ||
| Fuel tank | 600L | ||
| 2.Tank Specs | |||
| Item | Standard | ||
| Medium | Water | ||
| Loading system | Top loading | ||
| Capacity & Compartments | 20,000L, ullage as per +5%, single compartment | ||
| Tank shell Material and thickness | Carbon steel, 5.0/Q235 | ||
| Tank end and thickness | Carbon steel, 5.0/Q235 , dished | ||
| Compartment wall and thickness | Carbon steel, 5.0/Q235 , dished | ||
| Anti-wave plate and thickness | Carbon steel, 5.0/Q235, dished | ||
| Manhole | 2pcs, 20" | ||
| Bottom loading system | One 3" carbon steel pipe line Pipe line outlet is lies at right side of tank, located in the front of rear axle. Each pipe line outlet, a 3" carbon steel ball valve is fixed. | ||
| Ladder | A detachable Carbon steel ladder is equipped at the front of the tank | ||
| Walkway: | Anti-skid walk way along the entire length of tank. | ||
| Hose carriers: | Two pcs. Carbon steel | ||
| Hose: | Two pcs. 3"x4m, 3" stainless female camlock coupling on both end. | ||
| Pump | Carbon steel material, driven by PTO | ||
| Fire extinguisher box: | Two boxes are fixed on the left and right side of the tank. | ||
| Fire extinguisher: | Two 4kg dry powder fire extinguisher. | ||
| Fender: | Plastic material mudguards with plastic flap. | ||
| Tool Box: | Supplied by CIMC | ||
| Drain pipe; | Mild Steel | ||
| Side guard: | Both. Manufacture's standard design | ||
| Rear bumper: | Manufacture's standard design | ||
| 3.Tank Configuration | |||
| 1) Carbon steel water tank, thickness 5mm. | |||
| 2) With water pump. | |||

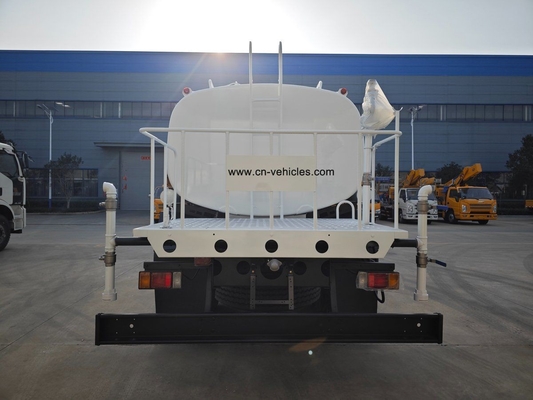

| 3) With rear working platform. | |||
| 4) With suction pipe. | |||
| 5) With fire connector | |||
| 6) With gravity valve | |||
| 4. Applicable scope | |||
| a. for a variety of road cleaning | |||
| b. City green sanitation | |||
| c. Trees, green belt and lawn watering | |||
| d. High altitude building rinse | |||
| e. Delivery water | |||
| 5. Special performance | |||
| 1) Front and rear spraying water. | |||
| 2) Left and right side spraying water. | |||
| 3) Platform has a sprinkler, spraying water. | |||
| 4) Water column can be adjusted into mist | |||
| 5) Width of spraying water : ≥14m. | |||
| 6) Distance of spraying water : ≥28m. | |||
| 6.Steel Treatment And Painting | |||
| Tank shell pre-treatment | Sand blasting before painting | ||
| Paint | All white with 3M reflective sticker (Red/White) | ||
| Hazchem sticker | As per requirements | ||
| 7.Other | |||
| As per factory standard. | |||
| Feature | Typical Specification | Notes |
|---|---|---|
| Chassis Brand | ISUZU Giga (often a 4x2 or FVR model) | Known for heavy-duty reliability. |
| Engine Horsepower | 240 HP (approx. 177 kW) | As specified in the request. |
| Engine Model | Varies, but commonly: ISUZU 6HK1 or similar diesel engine. | 6-cylinder, water-cooled, turbocharged diesel. |
| Emission Standard | Often Euro 5 or Euro 6 (depending on region/year). | Modern emission compliance. |
| Displacement | Approximately 7.79 L (for the 6HK1-TCG51 engine) | |
| Transmission | Manual, typically 6-speed or 8-speed (e.g., ISUZU MLD or FAST gearbox). | |
| Drive Type | 4x2 (two-axle, rear-wheel drive) is common for this power/capacity. | |
| Gross Vehicle Weight (GVW) | Around 18,000 kg (18 tons) | Varies with final tank capacity and regulations. |
| Cab | Giga-series cab, usually with A/C, power steering, and comfortable seating for 2-3 people. | |
| Feature | Typical Specification | Notes |
| Water Tank Capacity | 12,000 Liters to 15,000 Liters (approx. 3,170 to 3,960 Gallons) | This capacity is common for an 18-ton 4x2 chassis. |
| Tank Material | Carbon Steel (most common) or Stainless Steel (for potable/drinking water or corrosive liquids). | |
| Water Pump | China Famous Brand self-priming centrifugal pump (e.g., Weilong). | Often with a flow rate of 60 m³/h and a head of 90 m. |
| Self-Priming Ability | Suction lift ≥7 meters. | Essential for drawing water from external sources like ponds or rivers. |
| Sprinkling Width | ≥14 meters (using front/side spray nozzles). | For road cleaning and dust suppression. |
| Water Cannon/Gun Range | ≥28 meters (using the rear platform mounted cannon). | Adjustable for functions like heavy rain, moderate rain, drizzle, or haze/mist. |
| Spraying Nozzles | Standard Configuration: Front, rear, and side spray nozzles/bars. | Controls are typically manual, with pneumatic/electric controls optional. |
| Rear Platform | Equipped with a working platform, safety rails, and the high-pressure water cannon/gun. | |
Establishment: Founded in September 2004.
Headquarters: Located in Suizhou, Hubei Province, China, which is known as the capital of China's special purpose vehicles.
Scale: It is a large-scale manufacturer with substantial assets, a large production area, and thousands of employees. It has an annual production capacity of up to 100,000 special vehicles.
Group: It is the core subsidiary of the CLW Group, a diversified group involved in vehicle R&D, manufacturing, sales, and other related businesses.
Chengli produces an extensive range of over 800 types of special-purpose vehicles. Key product categories include:
Domestic Market: Chengli has a strong presence in the Chinese market, with its sanitation trucks and water bowsers often ranking first in national sales.
International Markets: Its products are exported to more than 80 countries and regions, including:
Certifications: The company holds numerous quality and safety certifications, demonstrating compliance with international and domestic standards, such as:
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
The Middle East in general
Chengli also serves the South American market, with customers in:
They have also exported products to:
Their most popular export products, often customized to meet local market regulations (such as right-hand drive and specific emission standards), include:
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
