| Brand Name: | Shacman H3000 |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |
Chassis Model: SHACMAN H3000
Drive Type: Typically 6x4 (3 axles, 10 wheels, with two drive axles).
Tank Capacity: 20,000 Liters (or approximately 5,283 US gallons / 4,400 UK gallons).
Engine: Often a high-power diesel engine (e.g., Weichai or Cummins), with varying horsepower (e.g., 300 HP to 380 HP) and emission standards (Euro II, Euro III, or higher, depending on the market and year of manufacture).
Transmission: Manual transmission (e.g., Fast brand with 12 forward and 2 reverse gears).
Gross Vehicle Weight (GVW): Around 25,000 kg (approx. 25 tons).
Tank Material: Usually Q235 Carbon Steel (often 4mm to 5mm thick) is standard, though stainless steel is an option for potable water.
Tires: Common sizes include 12.00R20 or similar heavy-duty radial tires.
water bowser fire fighting truck, which is also called watering truck, water tanker truck, water spraying truck, water tank truck, water sprinkler truck, fire fighting water truck, etc.
The water tanker truck is mainly used for water transportation, road sprinkling, plant watering, etc. The water tanker truck is consisted of chassis, Q235 water tank, front, side and rear sprinkler nozzle. Also , the rear of the water truck is equipped antiskid platform with water cannon. The water cannon can rotate 360 degree and the water flow can be adjusted to mist, light rain, moderate rain, heavy rain, etc. The spraying width of clw water truck is more than 15m and the cannon range is more than 25m.
As a professional water sprinkling truck supplier in China, besides normal water bowser truck, we also have multifunction water truck, such as water truck mounted crane, water truck mounted aerial working platform, etc.
The water sprinkler truck for sale is from 3000 liters to 30,000liter. The tank material of water tank are stainless steel, carbon steel, aluminium alloy.
| Feature | Specification |
|---|---|
| Tank Capacity | 20,000 Liters (20 m³ / approx. 5,000 Gallons) |
| Chassis Model | SHACMAN M3000 (or F3000/H3000) |
| Driving Type | 6*4 |
| Engine (Typical) | Weichai (WP10 series) or Cummins engine |
| Engine Horsepower | Typically around 290 HP to 345 HP (Varies by model/emission standard) |
| Emission Standard | Often Euro II, Euro III, or higher, depending on the market |
| Transmission | FAST Gear, Manual operation (e.g., 9 or 10 forwards, 1 or 2 reverse) |
| Rated Payload | Approx. 20,000 kg (20 tons) |
| Curb Weight | Approx. 10,500 kg - 12,000 kg |
| Overall Dimensions (L*W*H) | Approx. 9,600 - 10,400 mm * 2,500 mm * 3,200 - 3,700 mm |
| Wheelbase | Varies, e.g., 4375 + 1400 mm |
| Max. Speed | Approx. 90 km/h - 99 km/h |
| Tire Specification | 12.00R20 or similar radial tires |
| Front Axle | MAN 7.5T or similar |
| Rear Axle | MAN 13T or similar, Double Reduction Driving Axles |
| Tank Material | High-quality Carbon Steel (Q235) is standard, Stainless Steel is often optional |
| Water Pump | Equipped with a self-priming pump |
| Sprinkler System | Includes: Front flushing, rear sprinkling, side spraying, rear working platform with a high-pressure water cannon (water gun). |
| Water Cannon Range | Approx. 28 meters or more |
| Water Spray Width | Approx. 14 meters or more (for road sprinkling) |
| Items | Descriptions | Specifications and Types |
|---|---|---|
| General | Truck Name | Water Truck |
| Drive Type | 6*4 | |
| Loading Weight (kg) | 31000 | |
| Curb Weight (kg) | 14200 | |
| Approx.Overall Dimensions (mm) | 11950*2500*3210 | |
| Engine | Engine Model | WP10.380E22 |
| Engine Brand | Wei Chai | |
| Fuel Type | Diesel | |
| Power | 283kw/380HP | |
| Emission Standard | Euro II | |
| Displacement(ml) | 9726 | |
| Engine Type | 6 cylinders in line, inter cooler, supercharged diesel engine | |
| Chassis | Chassis Brand | SHACMAN |
| Cabin | One row with single sleeper, titled, flat roof | |
| Tire No. | 12+1 | |
| Tire Specification | 12.00R20 Steel tire | |
| Axle No. | 4 | |
| Steering Wheel | Left hand drive with power-assisted | |
| Gear Box | FAST 12 speed forward with 2 reverse, manual | |
| Brake | Air brake | |
| Tank | Tank Volume(L) | 30000 |
| Tank Shape | Ellipse | |
| Tank Material | Carbon Steel or stainless steel 5mm thick for optional |

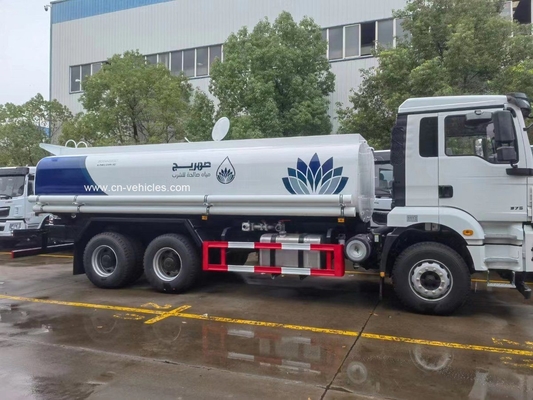

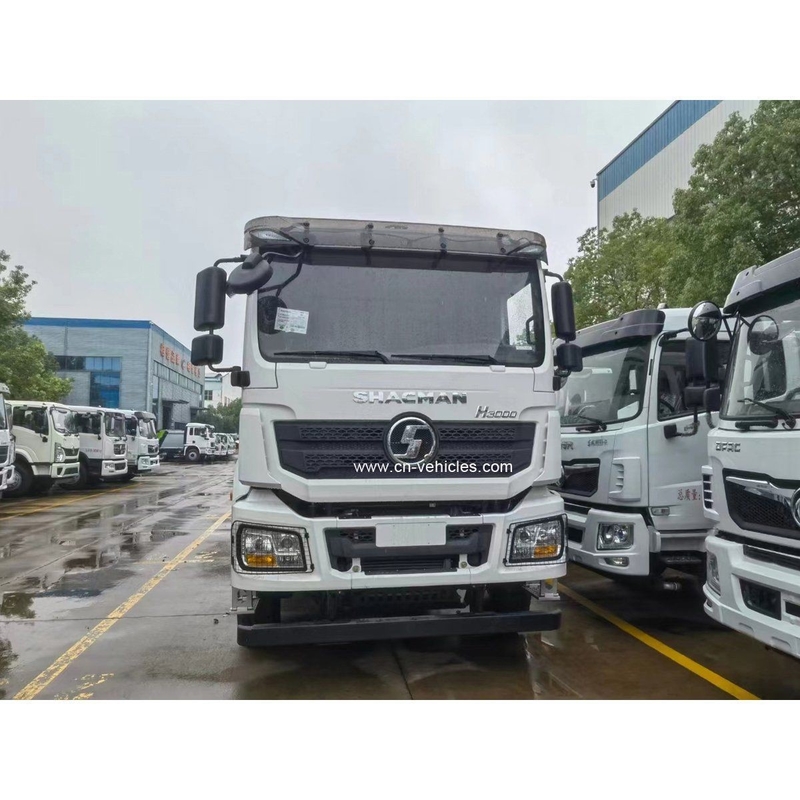

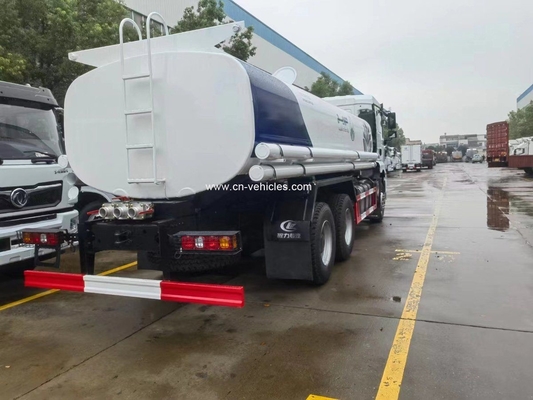

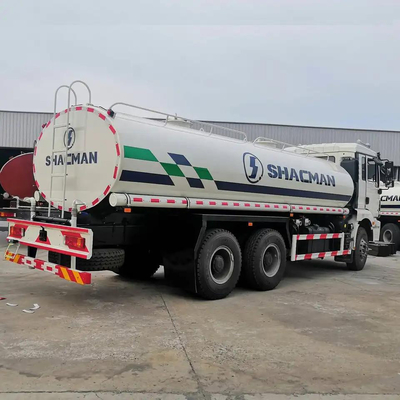

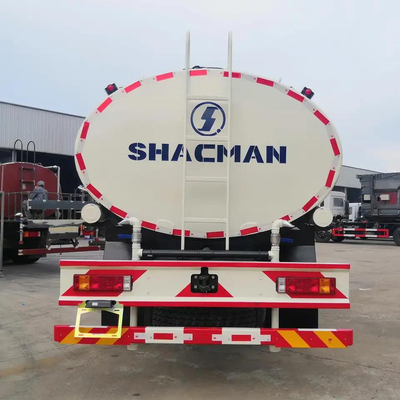

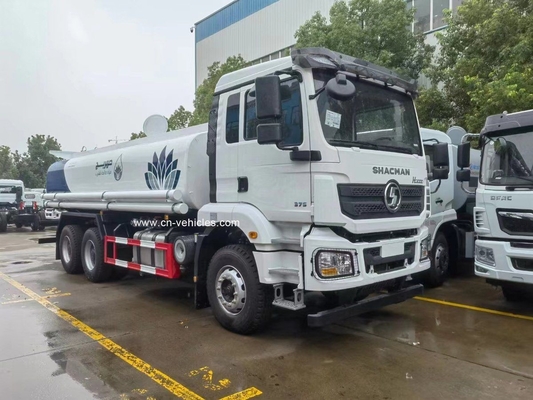

Shacman H3000 10 Wheeler Water Truck With 20000 Liters Water Tank Watering Cart details :
| Feature | Typical Specification |
|---|---|
| Truck Model | SHACMAN H3000 Water Distribution Truck |
| Drive Type | 6*4 (10 Wheeler is usually a 6x4 configuration with 10 tires) |
| Water Tank Capacity | 20,000 Liters (20 CBM) |
| Tank Material | Q235 Carbon Steel (common), sometimes Stainless Steel (optional) |
| Tank Thickness | Approximately 4mm to 5mm |
| Gross Vehicle Weight (G.V.W) | Approx. 25,000 kg |
| Curb Weight | Approx. 8,800 kg - 11,000 kg |
| Overall Dimensions (L*W*H) | Approx. 10,300−12,250*2,500−2,550*3,200−3,960 mm |
| Feature | Typical Specification |
| Engine Brand/Model | Weichai (e.g., WP10 series) or Cummins (optional) |
| Horsepower | 300 HP to 380 HP (varies by specific model/market) |
| Emission Standard | Euro II, Euro III, or higher (varies by destination market) |
| Transmission | FAST Gear, Manual (e.g., 9-speed, 10-speed, or 12-speed forward gears) |
| Wheelbase | Varies, often around 4375+1400 mm |
| Front Axle Capacity | MAN technology, approx. 7.5 Tons |
| Rear Axle Capacity | MAN technology, approx. 16 Tons (double reduction driving axles) |
| Tires | Radial tires, e.g., 12.00R20 or 295/80R22.5 |
| Cab | H3000 cab (typically with one sleeper and air conditioning) |
| Feature | Description |
| Water Pump | Self-priming sprinkler pump powered by the engine via Power Take-Off (PTO) |
| Pumping Capability | Self-priming (suction) and self-draining |
| Inlet/Outlet | Equipped with standard interfaces, often a ϕ65 fire interface for connecting to a fire hydrant for fast water intake. |
| Tank Features | Manholes, wave boards (anti-slosh baffles) inside the tank, water level metering tube. |
| Sprinkling System | Front Flush/Spray: For road cleaning and dust suppression. Rear Sprinklers: For road cooling and wider dust suppression. |
| Water Cannon | High-pressure platform water cannon/antiskid platform at the rear, often 360-degree rotatable with adjustable flow (mist, rain, jet, etc.). |
| Spraying Width | Typically more than 15 meters |
| Water Cannon Range | Typically more than 25 meters |
Sanitation & Municipal Vehicles:
Tanker & Pressure Vessels:
Construction & Utility Vehicles:
Special Transport & Others:
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Africa: This is a major market for Chengli, with sales reported in:
Commonly exported vehicles in this region include water trucks, sanitation vehicles (garbage and sewage), and dump trucks.
Southeast Asia and East Asia: A strong, established market for the company:
Middle East and Central Asia: A key region for its tanker products:
South America: The company has a presence in the South American market:
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
