| Brand Name: | CLW |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |
Chengli Special Automobile Co., Ltd. has a significant and actively growing presence in the international market, exporting its wide range of special-purpose vehicles to numerous countries across the globe.
Here is a breakdown of their overseas market reach:
Chengli Special Automobile Co., Ltd. exports its products to more than 80 countries and regions worldwide. Their main market focus is concentrated on several key geographic areas:
Africa: This is a major market for Chengli, with exports to countries including:

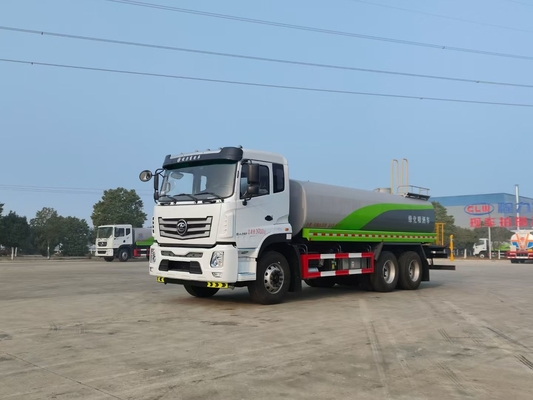

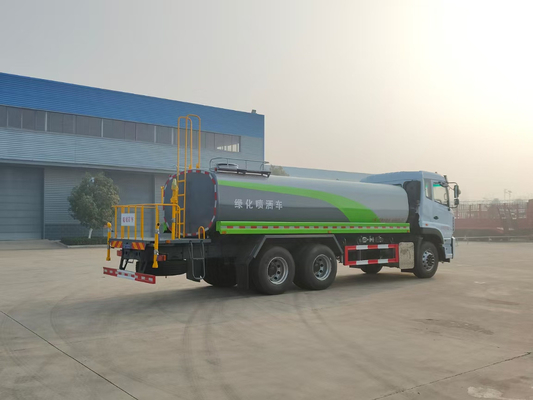

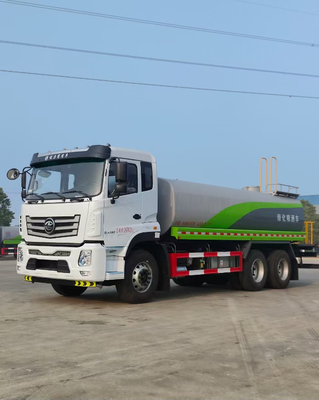

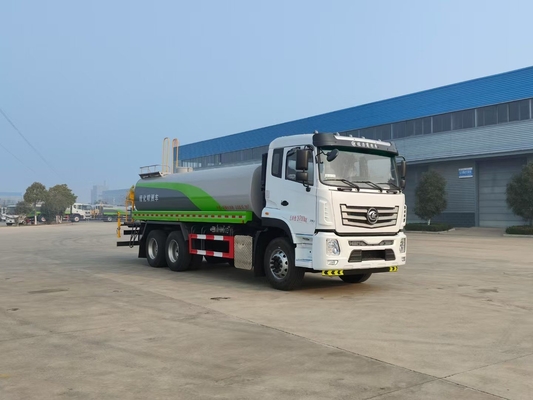

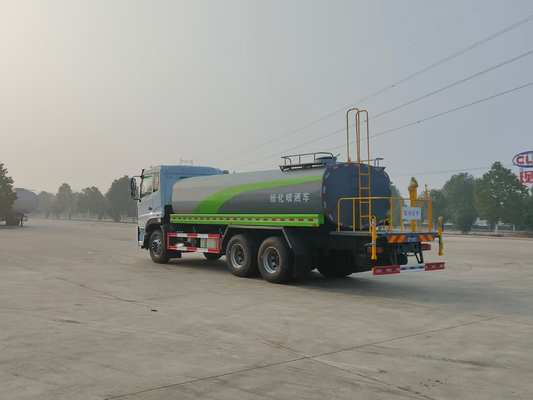

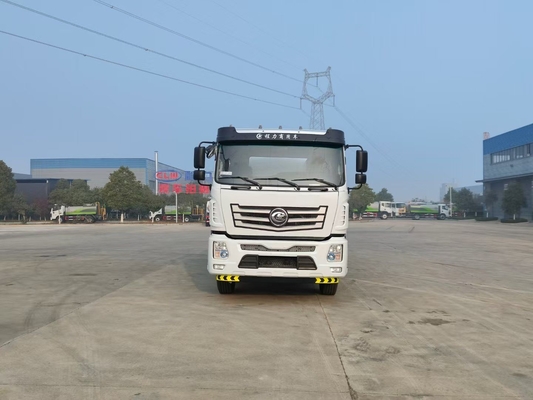

The truck you are describing is a heavy-duty municipal or industrial vehicle built by Chengli Special Automobile Co., Ltd. (CLW Brand), one of the largest special vehicle manufacturers in China.
While the specific chassis can vary based on customer choice, a 25,000L (25 CBM) tank is often mounted on a heavy-duty chassis from major Chinese truck manufacturers like SINOTRUK HOWO or FAW, and then customized with a Weichai diesel engine.
The water tanker truck is mainly used for water transportation, road sprinkling, plant watering, etc. The water tank truck is consisted of chassis, Q235 water tank, front, side and rear sprinkler nozzle. Also, the rear of the water truck is equipped antiskid platform with water cannon. The water cannon can rotate 360 degree and the water flow can be adjusted to mist, light rain, moderate rain, heavy rain, etc. The spraying width of chengli water tank truck is more than 15m and the cannon range is more than 25m.
| Manufacturer | Chengli Special Automobile Co., Ltd. (CLW) | Specialized vehicle builder. |
|---|---|---|
| Tank Capacity | 25,000 Liters (25 CBM) | Approx. 6,600 US Gallons. |
| Rated Payload | 20,000 kg (20 Tons) | Maximum legal payload (excluding curb weight). |
| Gross Vehicle Weight (GVW) | 32,000 kg to 40,000 kg (Approx.) | Depending on chassis and axle configuration. |
| Drive Type | 6*4 or 8*4 | Heavy-duty, all-wheel drive optional. |
| Overall Dimensions | 9,800 mm∼11,500 mm (L) *2,500 mm (W) *3,200 mm∼3,500 mm (H) | Varies by chassis model. |
| Max. Speed | 80 km/h∼90 km/h | Typical for heavy commercial vehicles. |
| Chassis Brand (Common) | SINOTRUK HOWO, Shacman, FAW | CLW typically mounts the tank on a chassis from one of these major Chinese truck manufacturers. |
| II. Engine & Drivetrain | ||
| Engine Brand | Weichai Power | Known for robust, powerful diesel engines. |
| Engine Model (Likely) | WP10 or WP12 Series | Common engine family for 20-25 ton trucks. |
| Engine Power | 270 HP∼380 HP (200 kW∼280 kW) | To handle the powerful 20 ton load. |
| Displacement | 9.726 Liters (WP10) or 11.596 Liters (WP12) | Depending on the specific model/power level. |
| Emission Standard | Euro II, III, IV, or V/VI | Varies based on the destination market's regulations. |
| Transmission | Manual (e.g., FAST Brand) | 9, 10, or 12 forward speeds, plus 1 or 2 reverse. |
| Tires | 11.00R20 or 12.00R20 | Heavy-duty radial tires. |
| III. Tank Body Specifications | ||
| Tank Volume | 25 m3 | |
| Tank Material (Standard) | Q235/Q345 Carbon Steel | Mild steel with internal anti-corrosion treatment. |
| Tank Thickness | 5 mm (Shell/Body) 6 mm (Head/Ends) | Heavy-duty construction. |
| Internal Structure | Anti-wave baffles/bulkheads | To prevent liquid surge and stabilize the truck. |
| Manholes | 1 to 2 units, quick-opening, DN460mm | Access for cleaning and filling. |
| Water Inlet | Pump suction and/or manhole loading. | |
| IV. Spraying/Pump System | ||
| Water Pump Type | High-power, self-priming centrifugal pump | PTO-driven from the truck engine. |
| Pump Flow Rate | 60 m3/h (Cubic meters per hour) or higher | Common flow rate for large tankers. |
| Suction Head/Depth | ≥6 meters (≈20 feet) | Allows for self-loading from external water sources (ponds, rivers). |
| Sprinkling/Flushing | Front flush nozzles | Sprinkling Width ≥14 meters |
| Dust Suppression | Rear spray (shower) and side spray nozzles. | |
| Water Cannon | High-pressure water monitor (gun) | Mounted on rear working platform, 360° rotatable. |
| Water Cannon Range | ≥35 meters (Columnar stream) | Used for firefighting, high-reach watering, and strong jet cleaning. |
| Outlets | Fire hydrant adapter, self-flow discharge valve. | For quick connection to fire hoses or passive gravity draining. |
| Overall | |
| Product model | CLWDFH1180B10S |
| Overall size | 7650*2500*3050mm |
| Overall G.W. | 16000kg |
| Curb weight | 6000kg |
| Fact load | 10000kg |
| Color | Standard white and blue(any color you like) |
| Chassis | |
| Chassis brand | Dongfeng |
| Chassis model | DFH1180B |
| Drive type | 4*2;Manual, right hand drive |
| Transmission | FAST 8 forward shift+1 rear |
| Brake | Air brake; Exhaust braking |
| Tyre | 10.00R20, 6+1pieces |
| Springs | 10/10+8 |
| Approach/departure angle | 28/19° |
| Overhang F/R | 1250/2450mm |
| Axis load | 4500/10000kg |
| Cabin | Two seats and with a bench;with A/C;with ABS |
| Engine | |
| Engine | B190-33 190HP |
| Engine brand | CUMMINS |
| Exhaust | 5.9L |
| Emission standard | Euro 3 |
| Engine type | Inline 6 cylinders, inter-cooling |
| Max speed | 90km/h |
| Fuel | Diesel |
| Maximum torsional moment | 1600rpm |
| Rated speed | 1500rpm |
| Full load minimum fuel consumption | ≤210g/kW.h |
| Water tank | |
| Medium | Drinking water |
| Tank capacity | 10cbm |
| Tank material | Carbon steel or stainless steel |
| Tank thickness | 4mm |
| Pump | 4" pump |
| Suction depth | above 6m |
| Sprinking nozzles | Aluminium alloy rear row type |
| Other equipments | 304-2B valve & 304-2B pipeline |
| Certification | CCC, ISO |
The water bowser functions are crucial:
Water Pump: Equipped with a dedicated water pump (often a self-priming centrifugal pump) powered by the truck's PTO (Power Take-Off).
Suction Height: ≥7 meters.
Full Tank Suction Time: <15 minutes.
Sprinkling System:
Water Cannon (Water Gun): Mounted on a rear working platform.
Additional Features:
Refrigerated Van Trucks (Reefers)
Engineering & Construction Vehicles:
Emergency & Specialty Vehicles:
Quality & Safety: ISO 9001 (Quality Management), ISO 14001 (Environmental Management), OHSAS 18001/ISO 45001 (Occupational Health & Safety), and CCC (China Compulsory Certification).
Specialized Licenses: Holds various pressure vessel licenses (A2, C2, C3) and certifications for military use and specific vehicle types like fire trucks and cranes.
Chassis Partnerships: Strategic partner and refitting base for major chassis manufacturers.
Innovation: Holds over 100 national patents for independent innovation products
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Total Countries: Chengli's products are exported to more than 50 (and in some sources, over 80) countries and regions worldwide.
Key Export Regions: Their major overseas markets are concentrated in:
The company's success in the overseas market is driven by its diverse range of specialized vehicles, which often meet the needs of developing infrastructure and essential services in these regions.
High-Volume Export Products:
Customization: They are noted for offering customized solutions and OEM services to meet the specific requirements of international clients.
International Standards: The company holds various international certifications such as ASME and ADR (for the transport of dangerous goods), which facilitates trade into many foreign markets.
International Projects: Chengli trucks are often involved in large-scale government and private projects overseas, such as supplying water trucks for South American countries or environmental sanitation vehicles for African and Asian nations.
Trade Fairs: They actively participate in global industry exhibitions to promote their products and engage with international buyers.
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan ,Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
