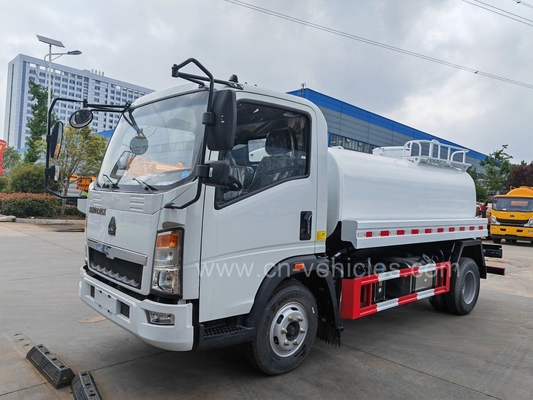

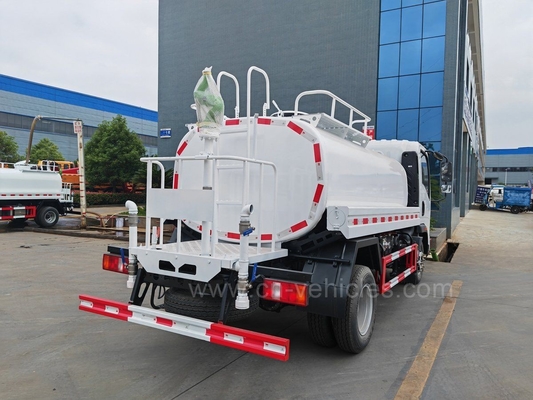

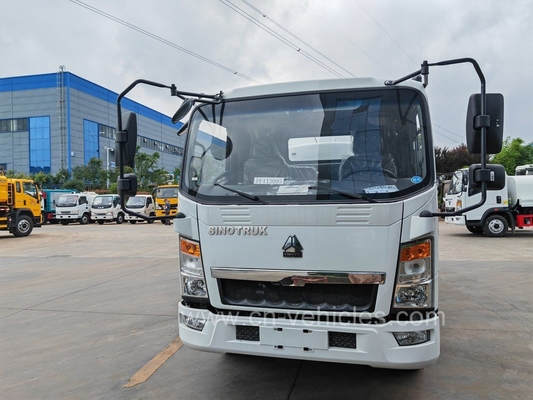

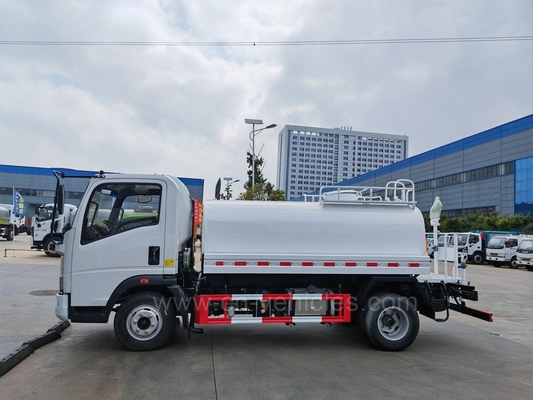

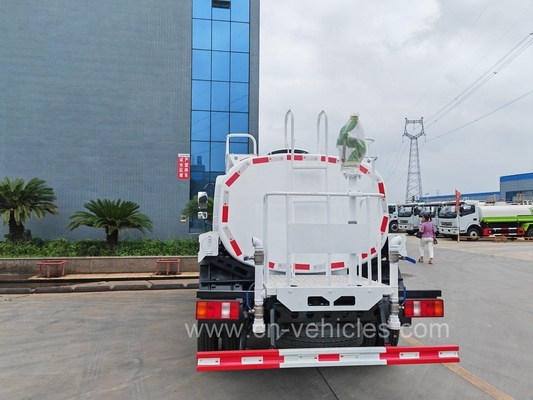

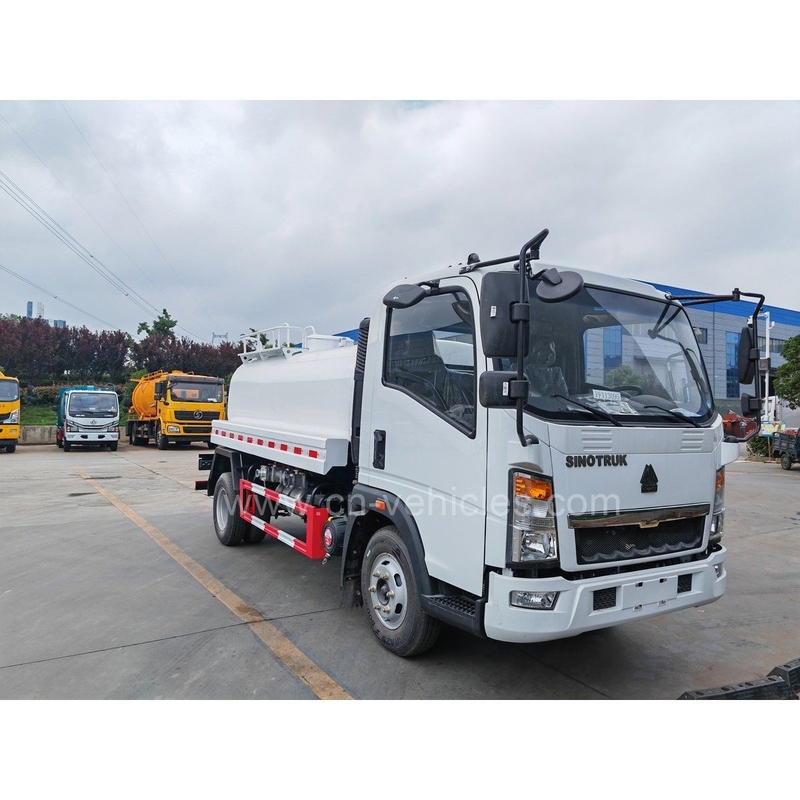

Sinotruk Howo 10cbm Water Sanitation Tanker Tank Sprinkler Truck

Sinotruk HOWO 10 CBM (10,000 Liters) Water Sanitation Tanker/Sprinkler Truck is one of the standard special-purpose vehicles widely produced by Chinese manufacturers, including Chengli Special Automobile Co., Ltd. (CLW Group), using the robust SINOTRUK HOWO chassis.

Adopt Sinotruk howo chassis, wheelbase 3300, Eruo III Yunnei diesel 110 horsepower engine, effective volume of tank is 5 cubic meters, water jet pump is 40/50.The tank body is pressed with 4mm thick national standard carbon steel plate, and the tank silo has a built-in baffle to prevent waves and sway.

• Optional chassis brand of portable water truck: Dongfeng, I suzu, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
• Tank body is automatically welded by the national standard high-quality steel plate, which can be self-absorbed and added with water + fire hydrant with water + tank top with water.
• Pipeline adopts large-diameter seamless steel pipe + large-diameter ball valve, with large flow and long range, 2 front hedges, 2 rear sprinklers for dust reduction, and 2 side spray irrigation.
• Rear large platform is equipped with a green water cannon with a range of 28 meters and can be rotated in all directions. It can be continuously adjusted to straight, heavy rain, light rain, drizzle, and fog.

This specific truck model is designed to be versatile for municipal and industrial use:

• Sanitation & Cleaning: Road flushing, street cleaning, and high-pressure washing of buildings and public spaces.
• Environmental: Dust suppression on construction sites, mining areas, and dry roads.
• Landscaping: Watering trees, green belts, and lawns.
• Emergency: Emergency water transport and basic auxiliary firefighting capabilities via the high-pressure water cannon and fire coupling

Sinotruk Howo 10cbm Water Sanitation Tanker Tank Sprinkler Truck product details :

1. Tanker Body (Water Tank)
   Capacity: 10 cubic meters (cbm) or 10,000 liters.
2. Material: Often made of high-quality carbon steel (Q235) with anti-corrosion treatment inside, although stainless steel (304) is an optional upgrade (especially for drinking water transport).
3. Functions: Designed for multiple sanitation and municipal uses, including:

• Road flushing and pavement watering.
• Dust suppression.
• Greening and irrigation of trees, green belts, and lawns.
• Emergency fire fighting (basic level).

2. Sprinkling System
   The truck is equipped with a dedicated high-power sprinkler pump and a comprehensive pipeline system for effective water distribution.
3. Water Pump: Typically a high-power centrifugal pump (e.g., from brands like Hangzhou Weilong Pump Co.).
4. Suction Lift/Height: Often ≥6 meters.
5. Flow Rate: Varies, but can be around 1000 liters/minute or more.
6. Sprinkling Capabilities:

• Front Spraying: Includes a front spray bar with fan-shaped nozzles, ideal for road flushing and dust suppression.
• Spraying Width: Often ≥14 meters or around 20 meters.
• Rear Sprinkling: Side-spray and rear-spray nozzles for general watering.
• Water Cannon (High Spray): Mounted on a rear working platform. It can typically:

• Rotate 360 ∘ .
• Adjust the water flow from a columnar jet to a vaporific (rain-like) shape.
• Water Throw/Range: Often ≥28 meters, and sometimes ≥60 meters for the high-pressure cannon.
• Additional Features: Self-priming function, gravity valve, and a fire hydrant connector for water intake.

3. Chassis and Engine
   The truck is typically built on a Sinotruk HOWO light or medium-duty chassis, most commonly a 4*2 drive type for the 10cbm capacity.
4. Drive Type: 4*2 (Four-wheel, two-wheel drive) is most common for 10cbm.
5. Engine: Sinotruk uses various engines (e.g., Weichai or Yuchai) with specifications that meet local emission standards (e.g., Euro II, Euro III, or higher).
6. Horsepower (HP): Commonly in the range of 160HP to 290HP for a 4*2 chassis.
7. Transmission: Manual transmission (e.g., 8 or 10 forwards, 2 reverses).
8. Cabin: HOWO HW76 or similar, usually with a single sleeper and air conditioning.
9. Tires: Commonly 8.25R20 or 10.00R20 radial tires.
10. Max. Speed: Typically around 90−95 km/h.
11. Steering: Hydraulic steering with power assistance (e.g., ZF technology).
