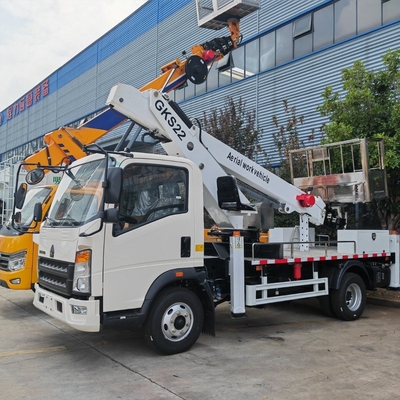

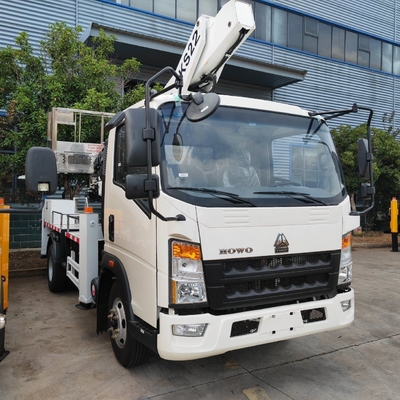

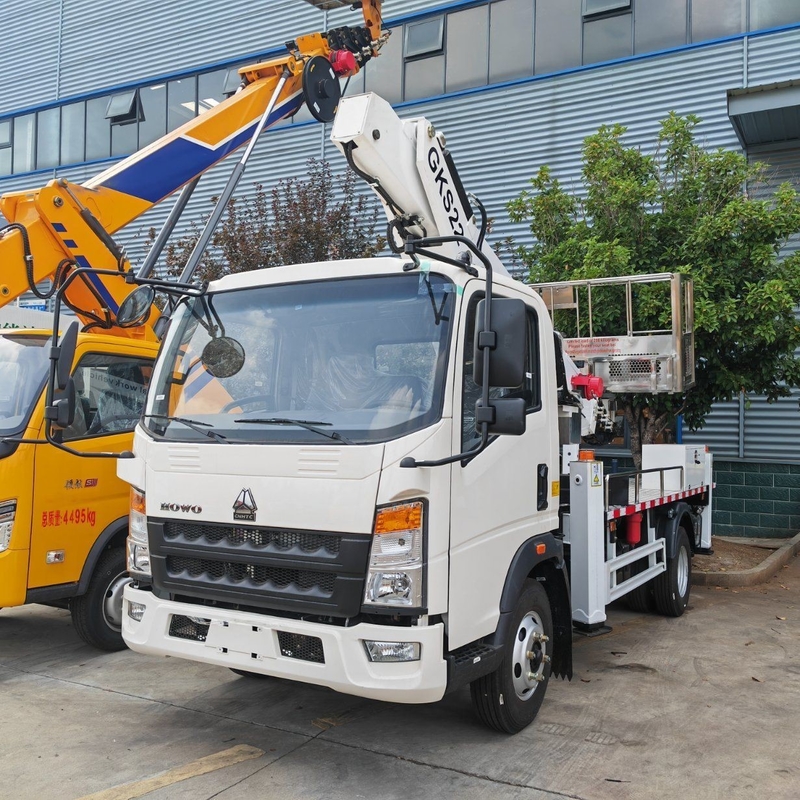

HOWO 22Meter New Aerial Working Platform Bucket Furniture Lift Truck

Aerial Working Platform Truck, likely manufactured under the HOWO brand, with a maximum working height of around 22 meters.

This kind of vehicle is an Aerial Work Platform (AWP), also commonly known as a bucket truck, cherry picker, or man lift.

• Chassis: Typically a HOWO (Sinotruk) light or medium-duty truck chassis, often with a 4×2 drive configuration.
• Working Height: The primary feature is the 22-meter (approx. 72 feet) maximum working height, which allows access to high areas.
• Boom Type: It usually features either a telescopic boom (straight arm) or a folding/articulated boom (knuckle arm) system, allowing for different reach and maneuverability capabilities.

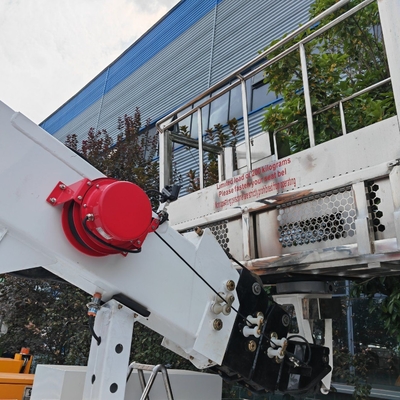

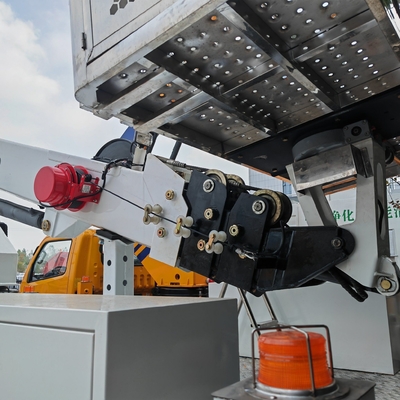

• Working Platform (Bucket/Cage): The platform is designed to safely lift 1-3 workers and their tools, often with a load capacity of around 200 kg. Some may offer an optional insulation feature.
• Operation: Equipped with a dual control system, allowing the platform to be operated from the bucket (upper control) and from a control panel on the turntable/chassis (ground control).
• Safety and Stability: Includes hydraulic outriggers (often H-type) for stability, hydraulic locks, safety interlocks (to prevent moving the truck when the boom is up), and emergency stop systems.
• Engine & Emission: The trucks typically run on a diesel engine, with various emission standards like Euro 3, Euro 4, or Euro 5, depending on the model and destination market.
• Optional Features: Many models offer an optional hoist hook (crane function) with a limited lifting capacity (e.g., 0.5 to 1 ton) for lifting materials.

These trucks are versatile and used across many industries for tasks requiring safe temporary access to elevated work areas:

• Utility & Municipal Work: Maintenance of street lights, traffic signals, power lines, and telecommunication lines.
• Construction & Installation: Installing and maintaining advertising billboards, exterior building components, and signs.
• Landscaping & Tree Care: Tree pruning and maintenance at height.
• Industrial Maintenance: Inspections, cleaning, and repairs in factories, shipyards, and large industrial facilities.
• Moving/Furniture Lift: The mention of "Furniture Lift Truck" suggests some models are used specifically for lifting furniture, windows, or building materials up to higher levels, especially in urban environments where traditional cranes or hoists are impractical.

Model:

HOWO Aerial Work Platform Truck / Furniture Lift Truck

Working Height:

22 meters

Type:

Multi-purpose bucket lift truck, optionally configured for furniture or cargo lifting (ideal for high-rise moving)

Application:

Aerial maintenance and inspection

Furniture delivery to high floors

Building glass/window installation

Electrical/telecom operations Te

HOWO 22-meter Aerial Working Platform Truck can be manufactured by several different specialized vehicle builders (using the HOWO chassis),

• Type: Equipped with 4-point H-Type hydraulic outriggers. The H-shape design offers a wide base for maximum stability.
• Operation: The outriggers can be independently and hydraulically controlled, allowing the truck to be leveled and stabilized even on uneven ground or slopes.
• Locking: Includes a bi-directional hydraulic locking mechanism to ensure the legs remain firmly extended during operation.

• Dual Control Systems: The machine can be operated from two stations: in the working bucket (upper control) and at the turntable/ground level (lower control).
• Remote Control: Many new models include a wireless remote control system for ground personnel, enhancing safety and visibility during setup and initial lifting.
• Safety Interlocks: The truck features a vital safety interlock system:
• The boom cannot be operated until all outriggers are correctly deployed.
• The truck's movement is locked while the boom is extended.
• Upper (bucket) and lower (ground) controls cannot be operated simultaneously, preventing conflicting commands.
• Emergency Features: Includes an emergency stop button in the bucket and a manual/electric emergency pump to safely retract the arm and lower the crew in case of engine failure.

• Chassis Brand: Sinotruk HOWO (a well-known Chinese heavy vehicle brand).
• Engine: Typically a powerful, efficient diesel engine (e.g., Cummins, Yuchai, or Chaochai) with power ratings around 120 HP to 160 HP.
• Emission Standard: Generally meets current international standards like Euro III or Euro IV/V, depending on the model year and destination.
• Driving Type: 4×2 (standard rear-wheel drive).
• Overall Weight: Gross Vehicle Weight (GVW) is typically in the 7,000 to 10,500 kg range.

Chengli Special Automobile Co., Ltd. (often referred to as CLW Group) is one of the largest and most prominent specialized vehicle manufacturers in China. They are known for their massive production scale, comprehensive product catalog, and wide range of certifications.

Here is a detailed overview of the company:

Chengli Special Automobile Co., Ltd. is the core enterprise of the CLW Group, located in Suizhou City, Hubei Province, which is known as the "Capital of China's Special Purpose Vehicles."

Establishment: Founded in 2004, the company has grown rapidly into a diversified group that is often listed among the Top 500 Private Enterprises in China.

Scale: The company operates on a very large scale, with assets totaling billions of RMB, covering a vast area, and employing thousands of staff, including a significant technical R&D team.

Core Business: Their primary focus is the R&D, manufacturing, and sales of special purpose vehicles and complete vehicle modification

Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

Market Reach: Chengli's products are sold across all 29 provinces and autonomous regions in China and are widely exported to over 30 countries and regions globally, including markets in Southeast Asia, Africa, South America, and the Middle East.

Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
