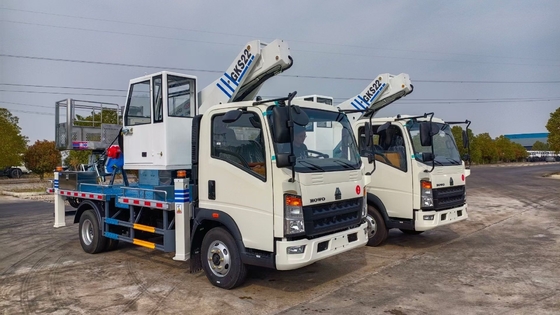

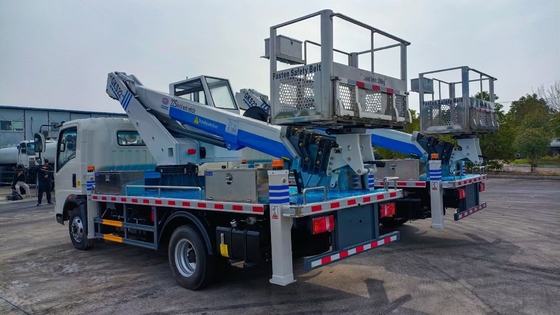

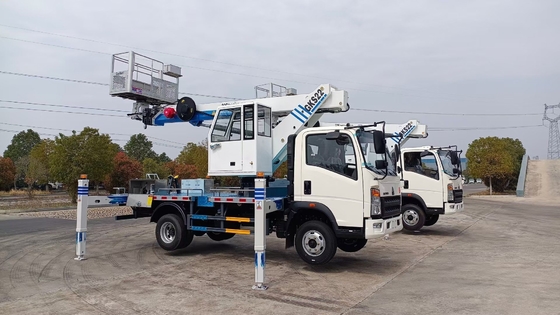

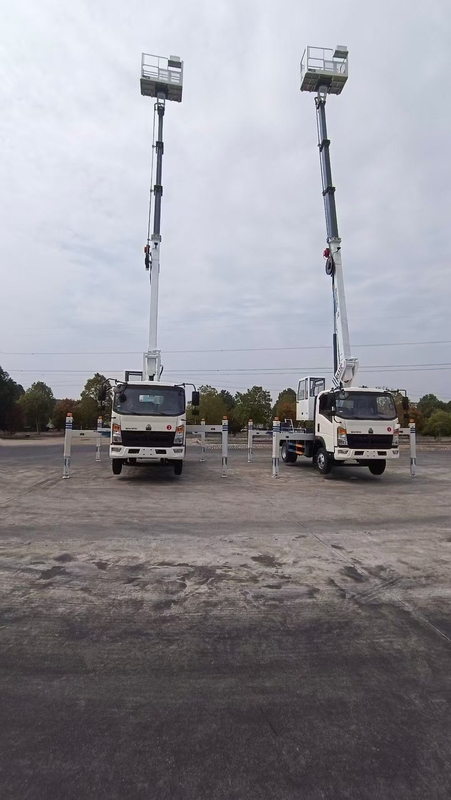

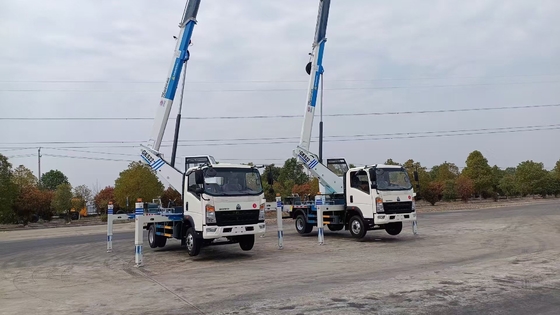

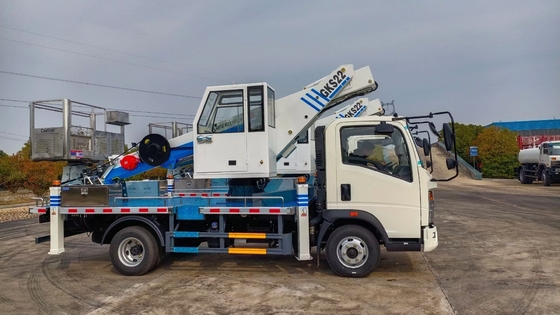

HOWO 22Meter Telescopic Boom Aerial Platform Working Aerial Bucket Truck

The HOWO 22-Meter Telescopic Boom Aerial Platform Working Aerial Bucket Truck is a specialized vehicle used for various high-altitude operations. It's essentially an aerial work platform (AWP), often called a "cherry picker" or "manlifter," mounted on a HOWO truck chassis.

Here's a breakdown of its key features and common applications:

• Maximum Working Height: The main feature is its 22-meter maximum working height, allowing for access to high areas.
• Boom Type: It uses a telescopic boom, which extends straight out to reach high or distant spots. Some models may have a combination of folding (knuckle) and telescopic arms.
• Chassis: The vehicle is built on a Sinotruk HOWO light-duty chassis. Specific chassis details like engine power, wheelbase, and emission standards (e.g., Euro 3, Euro 4) can vary between manufacturers and models.
• Working Basket (Bucket): This is the platform at the end of the boom where operators stand.
• Capacity: Typically rated for about 200 kg (enough for one or two workers and tools).
• Rotation: The basket usually has a ±90
  ∘
    rotation for precise positioning.
• Outriggers: It's equipped with hydraulic outriggers (often H-type) to stabilize the truck before and during operation, which is crucial when the boom is extended.
• Control System: It generally features a dual control system—one set of controls on the turntable (at the base of the boom) and another in the working bucket for convenient and safe operation.
• Slewing: The boom assembly can typically rotate 360
  ∘
    continuous rotation on the turntable.
• Safety Features: These trucks are equipped with safety mechanisms like hydraulic locks, two-way balance valves, interlocks to prevent misoperation (like moving the truck while the legs are deployed), and emergency systems.

• Municipal Services: Street light maintenance and traffic sign installation.
• Construction & Maintenance: Building exterior wall cleaning, window installation, painting, and general maintenance.
• Power and Telecommunications: Installation and inspection of power lines, cable work, and maintenance of communication equipment.
• Landscaping: Tree trimming and pruning in parks and urban areas.
• Advertising: Installing and servicing large outdoor billboards and signage.
• Industrial Use: Maintenance inside large factories, hangars, or industrial facilities.

Chassis configuration: single-row yellow cab, wheelbase 3300mm, Ou Sanchao 95 horsepower engine, 5-speed gearbox, steam brake, with direction boost, 7.00-16 tires.

Top-loading configuration: hydraulic 360-degree full rotation, three-section folding arm, optional 1 ton hook for folding arm series. Single hydraulic lifting cylinder, with two-way balance valve, lifting arm with electronic control operation, four hydraulic oil cylinder adjustable legs with two-way hydraulic lock (leg operation is manual operation, can be controlled separately)

Aerial platform vehicles are widely used for installation, maintenance and ascending operations in industries such as municipal administration, electric power, street lights, advertising, communications, photography, gardens, shipbuilding, transportation, docks, airports and ports, rescue and rescue, large industrial and mining enterprises, etc.

Aerial platform truck are also known as: street light repair trucks, hydraulic lift trucks, ascending platform trucks. Our company specializes in the production of 6 meters, 10 meters, 12 meters, 13.5 meters, 14 meters, 16 meters, 18 meters, 20 meters, 22 meters, 24 meters , 28 meters, 32 meters, 38 meters, 45 meters aerial platform trucks, lift trucks, products are widely used in electric power, street lamps, municipal Aerial work areas such as gardens, communications, airports, shipbuilding, ship repair, transportation, advertising, photography, etc. According to the type, it is mainly divided into: vertical lift type (also known as scissor type) aerial work truck, folding arm type lift aerial work truck, self-propelled aerial work platform, telescopic boom type aerial work truck, and ladder truck.

This 22 m truck is a highly versatile tool for tasks that require significant height access combined with street mobility. Common jobs include:

• Utility & Power Line Maintenance: Inspecting and repairing electrical wires and transformers.
• Street Light & Sign Maintenance: Servicing municipal lights and traffic signals.
• Telecommunications: Working on cell towers and aerial cables.
• Tree Pruning & Landscaping: Reaching high branches in urban areas.
• Building Maintenance: Exterior cleaning, painting, or installation on commercial buildings.
