| Brand Name: | CLW |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |
1. High Altitude and Working Height
Working Height: 45 meters (about 147.6 feet) is a significant height, placing this truck in the heavy-duty, ultra-high-reach category. These lifts are often used for tasks that exceed the reach of common aerial platforms.
2. High Altitude Operation (Engine and Performance)
The "High Altitude Operation" designation suggests the truck's engine and systems are specifically engineered to function efficiently in thinner air, where standard combustion engines can lose significant power. This typically involves:
3. Aerial Bucket Platform (Boom Structure)
This type of lift is known as an Aerial Work Platform (AWP), Bucket Truck, or Manlift.
4. Manufacturers and Models
Several global manufacturers produce aerial work platforms in this height range, including companies like:
Aerial working platform ( also called aerial platform truck , aerial lift , hydraulic beam lifter , aerial boom lift , bucket truck , telescopic platform , boom lift , overhead working truck , hydraulic aerial cage , sky lift ) Is ideal for maintenance of traffic lights , street lights , landscaping trees , Cleaning / setting signboard and other high aerial works .
Aerial work vehicles with telescopic arm can be reach to 22 m , Widely used in municipal , electricity , street lamps , advertising , communications , photography , gardens , shipbuilding , transportation , terminals , airport ports , rescue , large industrial and mining enterprises and other industries installation and maintenance operations .
| Specification | Typical Range/Value | Notes |
|---|---|---|
| Maximum Working Height | 45.0 meters (≈147.6 ft) | This is the key specification, measured to the bottom of the bucket or platform floor. |
| Maximum Working Radius (Outreach) | 22 to 28 meters (≈72 to 92 ft) | The horizontal distance the bucket can reach from the center of the vehicle's rotation. |
| Platform Rated Load (Capacity) | 200 to 600 kg (≈440 to 1320 lbs) | This dictates the maximum weight of personnel and tools allowed in the bucket. |
| Boom Structure | 7-section Telescopic or Articulating-Telescopic | Constructed from high-strength steel (e.g., Domex 700) for strength and low weight. |
| Rotation | 360 degrees Continuous | Allows the operator to access any point around the truck without repositioning. |
| Outrigger Type | Front V / Rear V or Front V / Rear H Hydraulic | Provides the wide, stable base needed for such height. Typical horizontal span is 6 to 8.7 meters. |
| Control System | Dual Control (Ground & Bucket) + Wireless Remote Control | Offers redundancy and flexible operation. Includes safety interlocks and emergency descent. |
| Platform Features | Hydraulic Self-Leveling, 360∘ Bucket Rotation | Essential for keeping the operator upright and allowing precise positioning. |
| Material Handling | Optional Hydraulic Jib/Winch | Common on utility models, with capacities ranging from 400 to 1500 kg. |
| Specification | Typical Range/Value | Notes |
| Gross Vehicle Weight (GVW) | 18,000 to 30,000 kg (≈40,000 to 66,000 lbs) | Dependent on the final chassis and upper body configuration. |
| Drive Type | 4x2 (Standard) or 6x4 / 8x4 (Heavy Duty) | 4x2 is most common for paved roads; 4x4 or greater for rough terrain/off-road. |
| Engine Type | Diesel, Inline 6-cylinder or 4-cylinder Turbocharged | Specifically tuned for high-altitude performance. |
| Engine Power | 200 to 240 HP | Providing sufficient power for road travel and hydraulic operation (via a Power Take-Off or PTO). |
| Emission Standard | Euro V or Euro VI / National VI | Varies by country of sale. |
| Transmission | Manual or Automatic | Heavy-duty manual transmissions (e.g., 6 to 8 forward speeds) are common. |
| Maximum Travel Speed | 90 to 105 km/h | Normal speed for a heavy truck. |
| Main specification | |||||
|---|---|---|---|---|---|
| Product model and name | 28m Aerial Working Truck For Sale | ||||
| Gross weight(Kg) | 7300 | Drive type | 4X2,LHD | ||
| Curb weight(Kg) | 6975 | Overall dimension(mm) | 7650X1980X3100 | ||
| Approach/departure angle(°) | 19/13 | Cab seats | 3+3 | ||
| Axle No. | 2 | Front/rear hang(mm) | 1032/2118 | ||
| Axle load(Kg) | 2920/4380 | Wheelbase(mm) | 3300 | ||
| Max speed(Km/h) | 95 | ||||
| Chassis specification | |||||
| Chassis model | EQ1060GLJ | Manufacturer | Dongfeng Motor Co., Ltd | ||
| Brand name | Dongfeng | Dimension(mm) | 5845×1900×2220 | ||
| Tyre specification | 7.00-16 | Tire No. | 6+1(One spare tire) | ||
| 8 | 8/9+5 | Front track base(mm) | 1506 | ||
| Fuel type | Diesel | Rear track base(mm) | 1466 | ||
| Emission standard | Euro III | Transmission | 5 forward gear | ||
| Cab | Double row,6 person allowed with power steering, optional to fix A/C | ||||
| Engine model | Engine manufacturer | Displacement(ml) | Power(Kw) | ||
| CY4102-C3F | Dongfeng Diesel Engine Co.,Ltd | 3856 | 95(70HP) | ||
| Upper part | |||||
| Working height | 15.6M meters | Control | Electronic | ||
| Maximum operating range | 7.5m | maximum lifting height | 28 meters | ||
| Rotation speed | 0-2r / min | Rotation angle: | 360 degrees | ||
| Hydraulic landing legs | 4pics | Working bucket max loading | 200kgs | ||
| Choose to fix lift hook, loading weight 1000kgs~1500kgs | |||||
| Main feature | |||||
| 1,The truck mainly used for high operation, for example electricity, telecommunications, street lighting, cable TV, garden, advertising, photography and so on. 2,The mainly valve and hydraulic cylinder all China famous brand or export brand. 3,Could operate on land or on the working bucket. |
|||||
| I. Structural Details and Performance | |
|---|---|
| Detail | Description |
| Boom Configuration | Typically a 7-section or 8-section synchronous telescopic boom (straight arm) or an articulating-telescopic design. It uses high-grade, lightweight steel like DOMEX 700 for high strength with minimal weight, improving stability at full extension. |
| Working Envelope | The boom can rotate a full 360∘ continuously to maximize coverage without repositioning the truck. The working height is 45 meters, with a typical maximum horizontal outreach of 22 to 28 meters. |

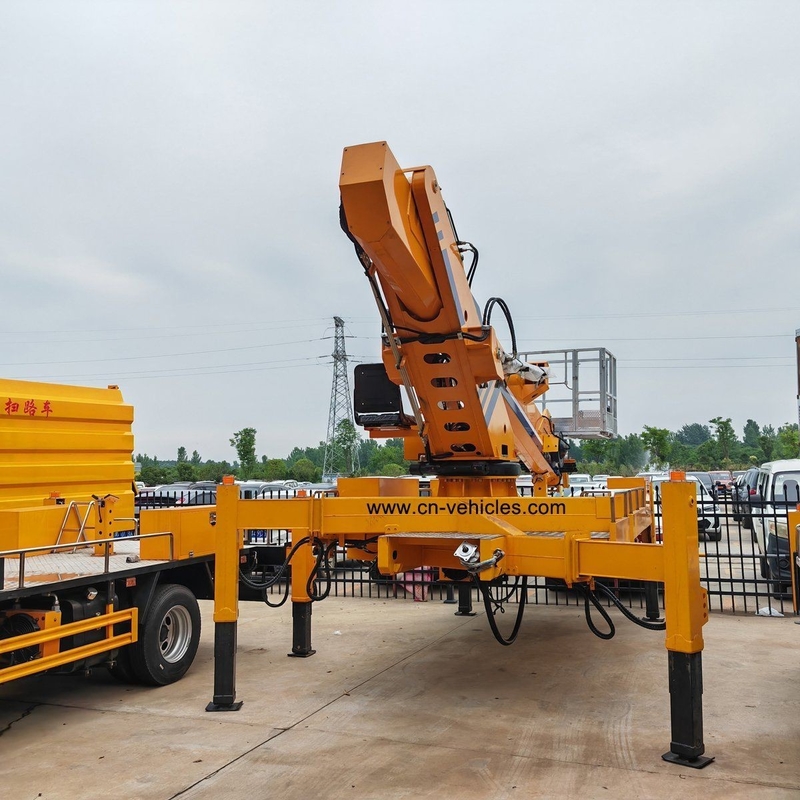

| Outrigger System | Features four large, powerful hydraulic outriggers (often V-style in the front and back). These legs have an automatic leveling system and an interlock safety device that prevents the boom from operating unless the outriggers are fully deployed and the truck is level. |
| Bucket Design | The aerial bucket (or platform) often measures around 1.6m×0.7m×1.0m and is built with fiberglass or high-strength composite material. The platform features hydraulic self-leveling and 360∘ rotation to ensure workers always have a stable, ideal working angle. |
| Insulation (Optional) | Many models are insulated (Dielectrically Tested) for working near high-voltage power lines, a common application at this height. This provides an essential safety buffer. |
| II. High Altitude & Engine Operation | |
| The "High Altitude Operation" specification requires unique engineering to compensate for the lower air density found at high elevations, which can starve a standard diesel engine of oxygen. | |
| Detail | Description |
| Engine Compensation | The truck chassis uses a powerful turbocharged diesel engine (e.g., Isuzu 4HK1). The turbocharger forces compressed air into the engine, effectively compensating for the thinner air and preventing the significant power loss and torque drop common in naturally aspirated engines. |
| Hydraulic Power | The engine powers a robust Power Take-Off (PTO) system, which runs the hydraulic pumps. The high-performance hydraulic circuit is designed to handle the heavy load cycles required to lift multiple sections of the boom smoothly and quickly. |
| Emergency Systems | Includes a 12V DC emergency pump that can power all boom functions. This ensures that in the event of an engine failure, the operator can still safely stow the boom and return the personnel in the basket to the ground. |
| III. Control and Safety Systems | |
| Detail | Description |
| Control Redundancy | Features three primary control modes: Ground Controls (for setup and emergencies), Bucket Controls (for precise operator positioning), and often a Wireless Remote Control (for operating from a better vantage point or driving certain functions). |
| Safety Interlocks | The entire system is governed by a computerized controller that monitors every critical parameter (e.g., boom angle, extension length, outrigger pressure, and bucket load). It includes an Automatic Moment Limit (AML) system that prevents the operator from moving the boom into an unsafe position that could cause tipping. |
| Integrated Monitoring | Many modern units include an LCD Working Monitor Panel in the cab and/or bucket. This display provides real-time data on the current working height, radius, and the stability percentage, helping the operator stay within the safety zone. |
Location: The company is headquartered in the Chengli Automobile Industry Park in Suizhou City, Hubei Province, China. Suizhou is often referred to as the "Capital of China's Special Vehicle Industry."
Scale and Status: Chengli is one of the largest special-purpose vehicle manufacturers in Central China. It is recognized by the National Ministry of Industry and Information and is consistently ranked among the "China Top 500 Private Enterprises."
Establishment: The company was founded in 2004 and has grown rapidly to employ thousands of staff, including a large team of R&D personnel and skilled workers. Their annual production capacity is substantial, reaching up to 100,000 special vehicles.
Certifications: Chengli holds numerous national and international quality and safety certifications, including ISO9001, ISO14001, OHSAS18001, China Compulsory Certification (CCC), and qualifications for manufacturing pressure vessels (A2, C2, C3).
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Chengli's export operations are broadly categorized into several major global regions, with a strong focus on developing and emerging markets:
This is a major market for Chengli. Sales often involve large municipal contracts for essential services.
These regions have a consistent demand for new vehicles to support rapidly developing infrastructure.
Energy and logistics vehicles are prominent here, alongside construction equipment.
The company has also established a presence in Latin American countries.
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mogolia, Philippine, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, uzbickstan, Kyrghyzstan, Tanzania, Zambia, Nigeria, Austrilia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and so on.
