| Brand Name: | CLW |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

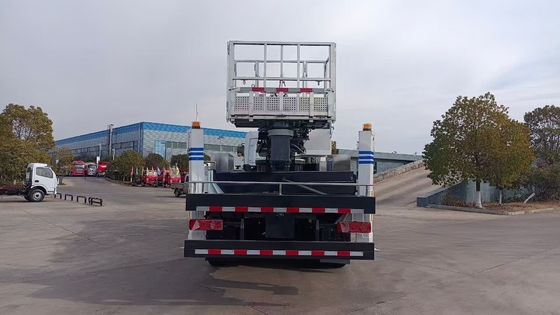

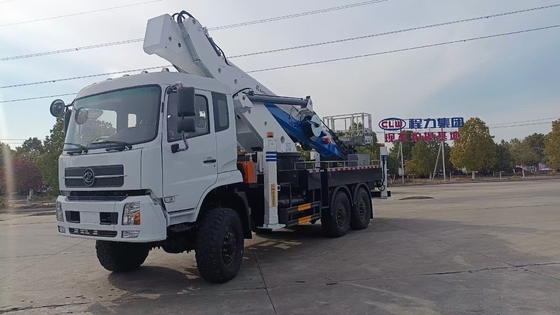

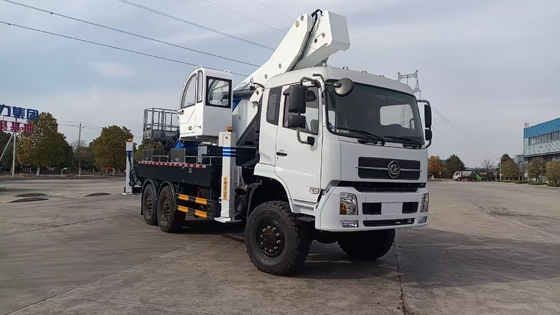

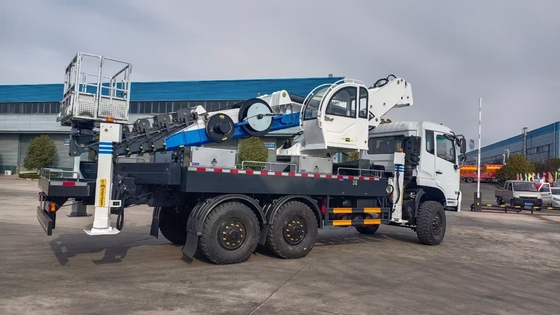

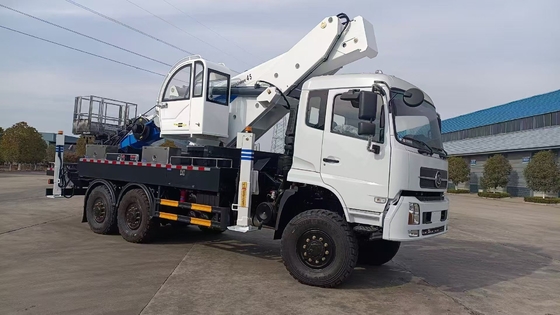

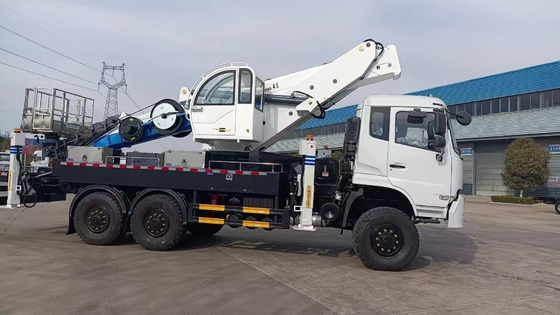

CLW Brand (Chengli Special Automobile Co., Ltd.) offers a variety of Aerial Work Platform Trucks, often referred to as boom lift trucks or cherry pickers. While they are primarily known for truck-mounted designs, the request for an "Off-Road Telescopic Aerial Boom Lift" indicates a specific focus on models designed for rough or uneven terrain, which CLW addresses with 4x4 (All-Wheel Drive) chassis options.
The telescopic design means the boom extends in straight, sliding sections, offering maximum vertical reach and horizontal outreach for jobs that require working around obstacles.
CLW Automobile Group (Chengli Group, Hubei, China) is one of the world’s leading manufacturers of aerial work‑platform trucks—also known as boom lifts, cherry pickers, bucket trucks, or aerial platform trucks. They offer models with telescopic, articulating, and scissor‑lift booms
These trucks are typically built on chassis from manufacturers like Isuzu, Dongfeng, JMC, Foton, etc., in 4×2 configurations. Working heights range typically from 8 m up to 50 m
Required Working Height & Reach – From 10 m for light tasks to 50 m for industrial applications.
Chassis Preference – Based on availability, serviceability, and drive orientation.
Boom Type – Telescopic for straight vertical reach, articulating for navigating obstacles.
Bucket Specification – Load capacity, insulation, number of workers.
Safety Equipment – Outriggers, remote control, emergency lowering, rotation limits.
Regulatory Compliance – Euro ± emission standards, ISO/CCC certification.
| Feature | Typical Specification Range | Notes on "Off-Road" Models | |
| Working Height | 12 meters (39 ft) up to 45 meters (148 ft+) | Common off-road models are often in the 16m - 20m range. | |
| Boom Type | Telescopic Arm (Straight Boom) | Designed for maximum reach and high-altitude operations. | |
| Drive Configuration | 4x2 (Standard) or 4x4 (Off-Road) | 4x4 (AWD) is the key feature for off-road/rough terrain capability, ensuring better traction and stability. | |
| Chassis Options | Dongfeng, Isuzu, Foton, JAC, JMC, HOWO (Sinotruk) | Customers can choose a chassis brand that is reliable or common in their local market. | |
| Platform Load Capacity | ≤200 kg (typically for 2 operators + tools) | Platform dimensions are usually around 1100×650×1150 mm. | |
| Rotation | 360∘ Continuous Slewing | Allows operators to cover a wide work area without repositioning the truck. | |
| Stabilizers | Hydraulic H-Type or V-Type Outriggers | Essential for stability, they extend horizontally and vertically to level the truck on uneven ground. | |
| Control System | Dual Control | Operations can be controlled from the basket (platform) or from the turntable (ground) for safety and precision. Some models feature a wireless remote control. | |
| Safety Features | Double balance valves, emergency power unit (for lowering the boom manually), outrigger detection, and anti-lock systems. | ||
| Product name | 4×2 45meter aerial lift truck and aerial work platform with truck | Chassis model | SX1166NR561 |
| Lift height customization | 45 meter | Total mass (kg) | 10295 |
| Engine horsepower | 205hp | Rated load mass (Kg) | 200 |
| Engine name | 4HK1-TC60 | Emission Standards | Euro6 |
| Dimensions (MM) | 9200×2460×3600 | Fuel type | Diesel |
| Number of tires | 6 | Tire specifications | 12.00R20 |
| Wheelbase (MM) | 5200 | Maximum speed (km/h) | 95 |
| Front track | 1910 | Rear track | 1800 |
CLW is a brand associated with Chengli Special Automobile Co., Ltd., which produces a wide range of specialized vehicles, including off-road telescopic aerial boom lift trucks (also called high-altitude operation vehicles or bucket trucks).
Because CLW offers many different models, the specific details can vary greatly. However, here are the general and representative details often found in their off-road (4x4) telescopic aerial platform trucks:
I. General Vehicle & Chassis Details (Common for 4x4 Models)
Brand: CLW (Chengli Special Automobile Co., Ltd.)
Chassis Options: Often built on robust chassis like Dongfeng, Isuzu, or CLW's own brand chassis, with 4x4 options for off-road capability.
Drive Type: 4x4 (Four-Wheel Drive) with a transfer case to switch between 2WD and 4WD modes, allowing for off-road and uneven terrain access.
Engine: Typically a Diesel engine, with power outputs ranging from around 130 HP to 150 HP (e.g., Yunnei or similar engines), meeting emission standards like Euro V or higher.
Transmission: Manual transmission (e.g., 5-speed or 6-speed).
Outriggers/Stabilizers: Equipped with Hydraulic Outriggers (often V-shaped front and rear, or H-shaped) for stability during high-altitude operation. These are typically controlled independently and have safety interlocking systems.
II. Aerial Working Platform (Superstructure) Details
Boom Type: Telescopic Boom (straight arm) is the defining feature, consisting of multiple high-strength steel sections that extend hydraulically.
Working Height: CLW offers a range of working heights, but common telescopic models include:
18 meters, 21 meters, 24 meters, 28 meters, 30 meters, and higher (up to 45m+ for larger chassis).
Platform/Basket:
Rated Load Capacity: Typically around 200 kg (suitable for 1-2 workers plus tools).
Material: High-strength stainless steel, or insulated fiberglass/bucket (optional for electrical work).
Rotation: Often capable of continuous 360° slewing (turntable rotation) and sometimes 360° rotation for the basket itself.
Control System: Dual Control System (in-cab/turntable control and working basket control). Often includes a wireless remote control for precise and safe operation.
Safety Features: Includes Emergency Stop buttons, Hand-operated emergency pump (for lowering in case of power failure), Outrigger/Boom interlock systems, level balancing systems, and two-way hydraulic locks to prevent the boom from falling.
Chengli Special Automobile Co., Ltd. (CLW Group) is a major Chinese manufacturer specializing in the research, development, and production of a wide range of special purpose vehicles. It is one of the largest specialized vehicle manufacturers in China and is often recognized as a leading enterprise in the industry.
Here are the key details about the company:
Overview and History:
Establishment: The company's predecessor, Chengli Special Automobile Co., Ltd., was established in September 2004.
Location: The company is headquartered in Suizhou City, Hubei Province, which is known as the "capital of China's special purpose vehicles."
Scope: CLW Group is a diversified group that integrates R&D, manufacturing, sales, finance, and other businesses for complete vehicles, special purpose vehicles, new energy vehicles, and automotive parts.
Brand: Their registered trademark and product code is "CLW" or "CHENGLIWEI".
Chengli Special Automobile Co., Ltd. (CLW Group) has a significant and actively expanding presence in the global market, exporting its specialized vehicles to numerous countries across various continents.
Here are the key details about their overseas market:
Global Reach
Number of Countries: Chengli's products have been exported to more than 80 overseas countries and regions.
Key Export Regions: Their main international markets span:
Africa: A very strong market, including countries like Nigeria, Ghana, Angola, Tanzania, Kenya, Uganda, Ethiopia, Sudan, Mali, and Congo.
Asia/Middle East: A substantial market including Vietnam, Myanmar, Philippines, Malaysia, Cambodia, Laos, Kazakhstan, Uzbekistan, Russia, and the UAE (United Arab Emirates).
South America: Countries such as Venezuela, Chile, Bolivia, and Peru.
Oceania/Others: They also export to countries like Australia and New Zealand.
