| Brand Name: | Foton Auman |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

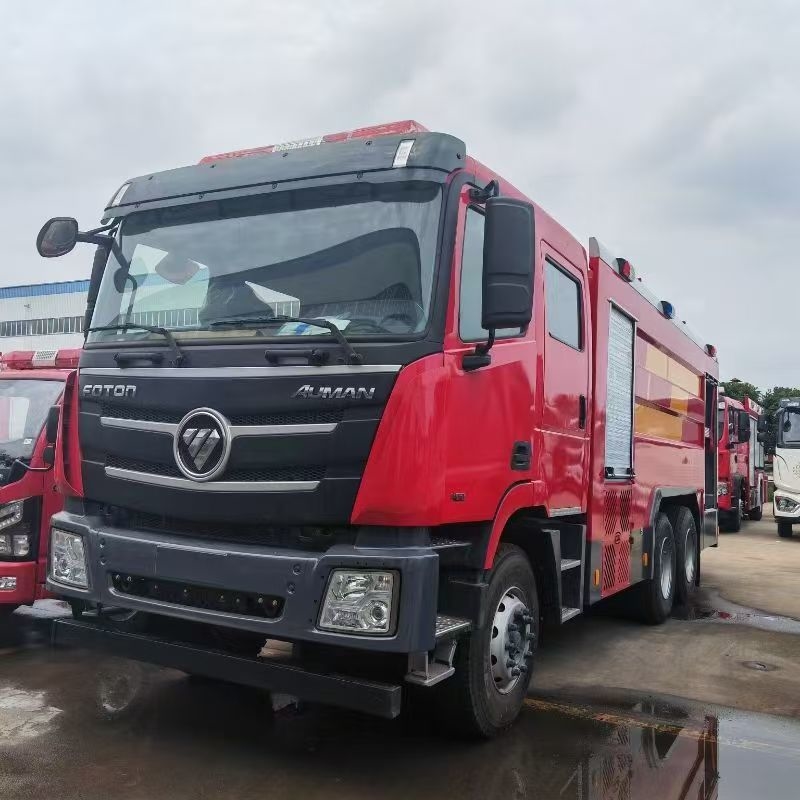

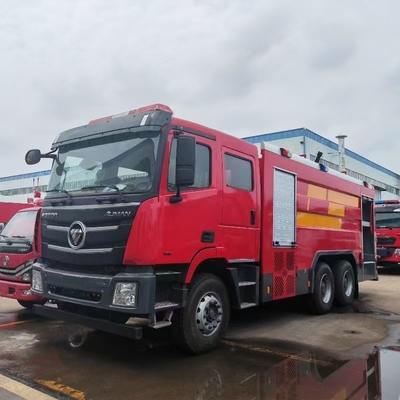

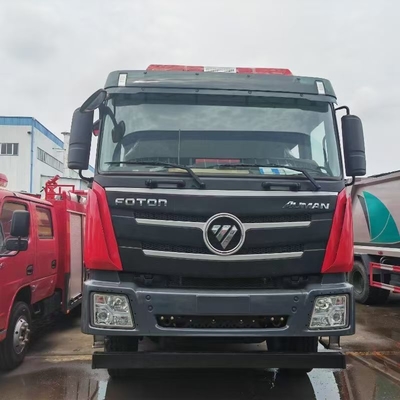

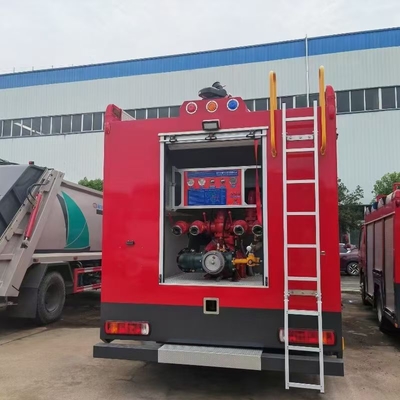

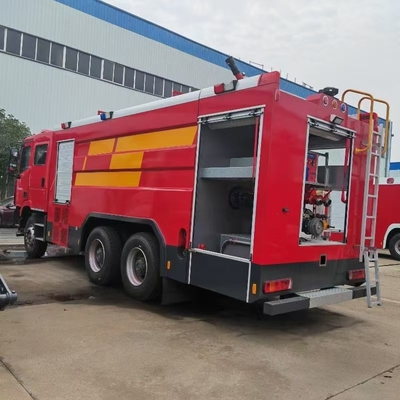

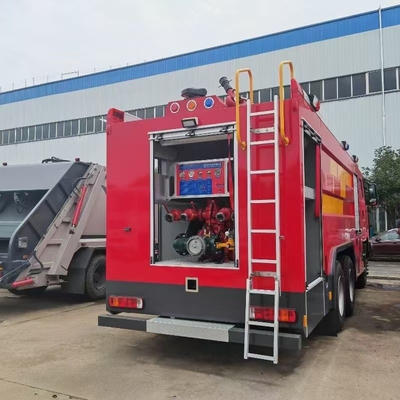

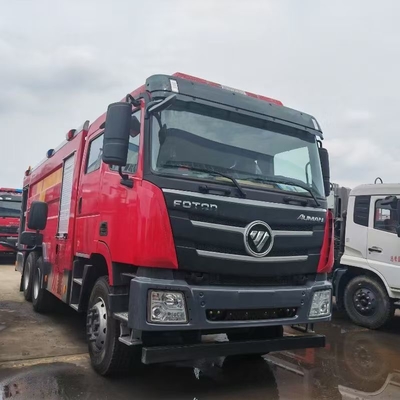

The Foton Auman is a popular chassis for specialized vehicles, including Foam Fire Fighter Department Rescue Vehicles. These fire apparatus are custom-built by various special vehicle manufacturers on the heavy-duty Foton Auman chassis.
Here is a breakdown of the typical characteristics and specifications for a Foton Auman-based foam fire and rescue truck:
Base Chassis: The fire trucks are typically built on the heavy-duty Foton Auman chassis, often from the GTL or ETX series, which are engineered for high load capacity and demanding conditions.
The Foton Auman Foam Fire Fighter/Department Rescue Vehicles are typically customized, meaning specifications can vary between different models and manufacturers/upfitters. However, based on common configurations, here are the typical technical details for a standard Foton Auman Foam Pumper Fire Engine (e.g., a 12 CBM or similar model):
| I. Chassis & Vehicle Parameters (Example: FOTON Auman 6x4 Fire Engine) | |
|---|---|
| Feature | Typical Specification Range |
| Chassis Brand | FOTON Auman |
| Drive Type | 6×4 (or 4×2, 8×4 depending on capacity) |
| Overall Dimensions (L×W×H) | Approx. 9,900×2,480×3,500 mm |
| Wheelbase | Varies, e.g., 4,300+1,350 mm (for 6×4) |
| Max. Driving Speed | 90 km/h |
| Curb Weight | Approx. 12,040 kg (depending on configuration) |
| Gross Vehicle Weight (GVW) | Approx. 24,490 kg (depending on configuration) |
| Cab Type | Double row cabin (for fire crew), 4 doors, seats for 6−8 people |
| Tire Specification | 12.00R20 or 11.00R20 (with spare tire) |
| Brakes | Dual circuit compressed air brake |
| II. Engine System | |
|---|---|
| Feature | Typical Specification Range |
| Engine Model | E.g., WP10.270 (Weichai) or Cummins ISG |
| Engine Type | 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging, and inter-cooling (Diesel) |
| Horse Power (HP) | 270 HP (common) to 430 HP+ (for heavy-duty) |
| Emission Standard | Euro III, Euro IV, or higher |
| Gearbox | Manual type (e.g., 8 or 9 forwards & 1 reverse) |
| FOTON 6*4 fire truck | |||
| Drive Model | 6*4 | ||
| Chassis | BJ1253VLPJE | ||
| Fact cubage | 11.655cbm(water tank:9cbm, foam tank 2.655cbm) | ||
| Vehicle Main Dimensions | Dimensions(L x W x H)(mm) | 9905x2480x3500 | |
| Wheel base (mm) | 4300+1350 | ||
| Overhang (front/rear) (mm) | 1555/2600 | ||
| Wheel track (front/rear) (mm) | 2005/1865/1865 | ||
| Approach/Departure angle(°) | 18/16 | ||
| Weight in KGS | Curb Weight | 12040 | |
| GVW. | 24490 | ||
| Max. driving speed(km/h) | 90 | ||
| Engine | Model | WP10.270 | |
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Horse Power(HP) | 270 | ||
| engine capacity(ml) | 199 | ||
| Emission standard | Euro III | ||
| Gearbox | 8 forwards & 1 reverse | ||
| Clutch | Reinforced diaphragm clutch | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Fuel tank (L) | 200 | ||
| Tire | 12.00R20 , 10pcs + 1 spare | ||
| Brakes | dual circuit compressed air brake | ||
| UPPER | |||
| Water tank Volume | 9cbm | ||
| Foam tank Volume | 2.655cbm | ||
| Loading Capacity | 11.655 | ||
| Protective material | Carbon steel | ||
| Key Equipment | |||

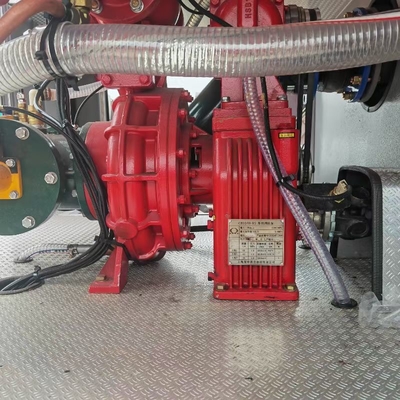

| Fire Pump | Mode | CB30.60 | |
| Flow | 60L/s | ||
| Pressure | 1.0Mpa | ||
| Fire Monitor | Mode | PL48 | |
| Pressure | 1.0-1.2MPa | ||
| Flow | 48L/S | ||
| Fire Distance(water/foam) | ≥65m/60m | ||
| Rotation Angle(°) | 360/-30~80 | ||
The Foton Auman Foam Fire Fighter and Department Rescue Vehicles Truck is a heavy-duty, specialized vehicle designed for effective urban and industrial fire suppression and emergency response.
Since Foton Auman chassis are used for various fire and rescue truck configurations, the following details are based on a common Foton Auman 12 CBM (Cubic Meter) Pumper Fire Engine (a water/foam tender) model.
The "Department Rescue Vehicles" aspect typically refers to the vehicle's role in the fire department and the equipment it carries, which may include:
