| Brand Name: | CLW |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

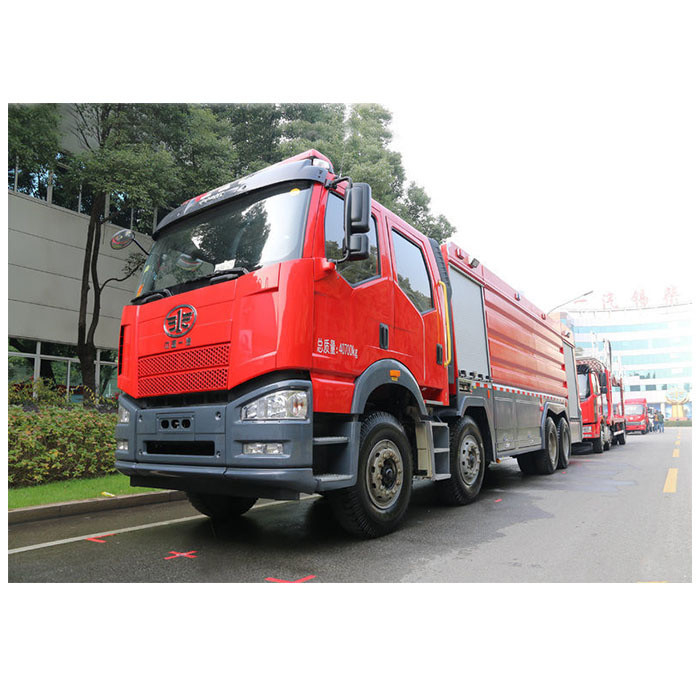

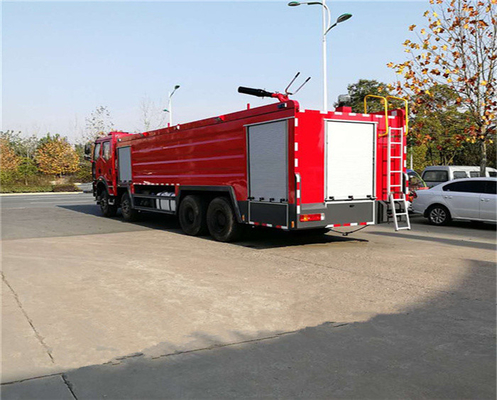

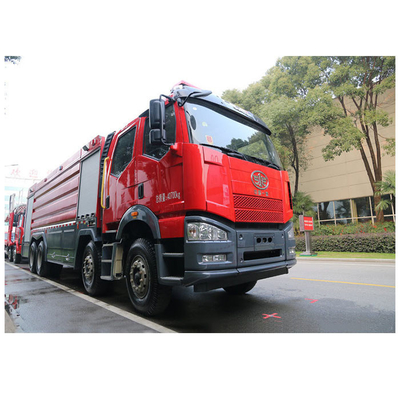

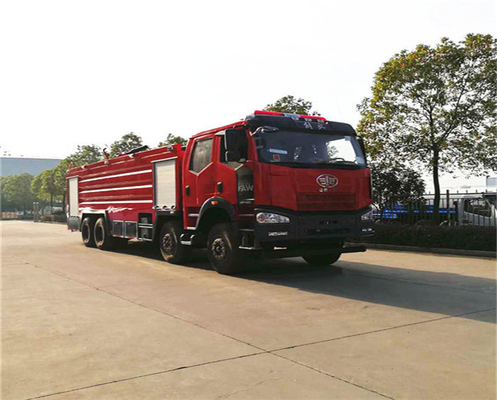

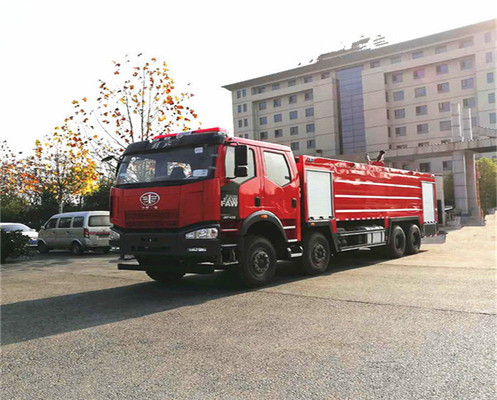

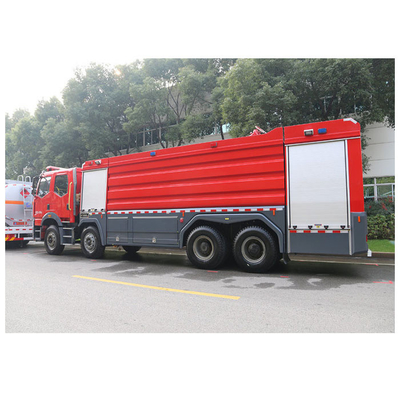

The FAW 12-Wheel Water/Foam/Dry Powder Heavy Fire Fighting Truck is a specialized, multi-functional emergency vehicle built on a heavy-duty FAW chassis, typically designed for industrial areas, petrochemical sites, airports, or large municipal fire brigades.
While specific capacities can vary slightly between manufacturers and custom orders, the general specifications for this class of 8x4 (12-wheel) fire truck are as follows:
FAW Fire Fighting Truck is apply for fire brigade of large and medium city, petrochemical enterprises, airports and harbors and so on, to put our large area fire of oil and other substance.
We can supply water fire truck, foam fire truck, Foam and powder fire vehicle, Emergency fire truck, Fire pumper, Industrial fire vehicle, CAFS fire trucks and so on.
All our fire trucks with huge fire equipment and you can put fire-fighting immediately.
| 1. General Vehicle Specifications | ||
| Feature | Typical Specification | Notes |
|---|---|---|
| Chassis/Drive | FAW Heavy-Duty Chassis, 8x4 Drive (12 wheels) | The 8x4 configuration provides the necessary capacity for the large combined tanks. |
| Total Mass (GVW) | Up to 41,000 kg (41 tons) | A heavy-duty classification to handle the large liquid and powder loads. |
| Dimensions (L x W x H) | Approx. 11.8×2.5×3.8 meters | Varies based on tank size and superstructure. |
| Engine Power | Typically ≥300 kW/400 HP | Required for operating the pump at full capacity and driving the heavy vehicle. |
| Cabin | Double Row / Extended Cab | Accommodates a full fire crew, typically 2+4 or 3+3 passengers. |
| Tire Specification | 12.00R20 or similar | Heavy-duty radial tires. |
| 2. Extinguishing Agent Capacities | ||
| This truck is known as a combined fire truck because it carries three different extinguishing agents to fight a wider range of fires (Class A, B, and C): | ||
| Agent Type | Typical Capacity (Range) | Purpose/Fire Class |
|---|---|---|
| Water | 6,000L to 10,000L+ | For Class A fires (wood, paper, textiles, etc.). |
| Foam | 1,000L to 3,000L | Mixed with water for Class B fires (flammable liquids like fuel or oil). |
| Dry Powder (DCP) | 250kg to 1,000kg | For Class B and C fires (flammable liquids and electrical fires), pressurized by Nitrogen (N2) or CO2 cylinders. |
| Cab | Double row;3+3 | Traction system | 8×4 |
| Color | Red or Optional | Tire specification | 12..00R20 |
| Wheel base (mm) | 2100+4300+1350 | Tire quantity | 12+1 |
| Number of axles | 4 | Emission standard | Euro 2; 3 |
| Size: 11.82×2.5×3.81 m |
11820×2500×3810 | Total mass | 41000 |
| Tank medium: Water, foam tank |
Water, foam ,Dry powder | Fuel type: | diesel |
| Maximum output power: 312kW |
312KW |
FAW 12-wheel (8x4 drive) Water/Foam/Dry Powder Heavy Fire Fighting Truck is a complex, multi-functional piece of equipment. The "Produce Details" refer to the engineering and construction of the vehicle's specialized superstructure, particularly the tanks and firefighting systems.
Here is a breakdown of the typical production details and key materials used for this type of combined heavy fire truck:
1. Chassis and Cabin
Chassis Base: Built on a heavy-duty FAW truck chassis (e.g., J6P or similar) configured for 8x4 drive (12 wheels). This high load-bearing capacity is necessary for the massive tanks.
Engine/Drivetrain: Features a high-power FAW (or partner) diesel engine (typically ≥312 kW/420 HP) with a corresponding heavy-duty transmission and robust axles.
Crew Cabin: A factory-supplied double-row cabin (four doors) is modified to carry a full fire crew (e.g., 2+4 or 3+3). It includes essential fire control dashboards, siren/light controls, and air conditioning.
The FAW 12-wheel (8x4 drive) Water/Foam/Dry Powder Heavy Fire Fighting Truck is a multi-agent suppression vehicle designed to handle the most complex and high-risk fires. Its ability to carry three different extinguishing agents (Water, Foam, and Dry Powder) makes it highly versatile and indispensable in specific environments.
The primary applications for this heavy-duty, multi-agent truck are in industrial and high-hazard zones where Class B (flammable liquids) and Class C (electrical) fires are prevalent.
Chengli Special Automobile Co., Ltd. is one of the largest and most well-known manufacturers of specialized vehicles in China. It is a core enterprise of the CLW Group and is recognized as a major government-designated producer of special-purpose trucks.
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Chengli Special Automobile Co., Ltd. has a vast and well-established presence in the global market, exporting its specialized vehicles to a significant number of countries across multiple continents. The company positions itself as a major vehicle and auto parts export base in China.
Here is a breakdown of their overseas market reach:
Global Reach
Total Countries: Chengli exports its special trucks and vehicles to more than 80 countries and regions worldwide.
Export Volume: The company reports exporting tens of thousands of trucks annually, which is a major component of its overall sales.
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mogolia, Philippine, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, uzbickstan, Kyrghyzstan, Tanzania, Zambia, Nigeria, Austrilia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and so on.
