HOWO Stainless Steel Milk Tanker Drinking Water Juice Milk Transport Milk Tanker Truck

HOWO Stainless Steel Milk Tanker Drinking Water Juice Milk Transport Milk Tanker Truck

Brand Name: HOWO
Model Number: CLW
MOQ: 1
Price: 15000-35000 per unit
Payment Terms: 50% Deposit,Balance should be paid before ship out
Supply Ability: 10unit per month
Detail Information
Place of Origin:
China
Certification:
ISO9001, ISO14001, OHSAS18001, CCC
Model NO.:
HOWO
Volume:
15001 - 30000L
Emission Standard:
Euro 4
Sprinkling Area:
>16m
Transmission Type:
Manual
Payload:
20T
Fuel:
Diesel
Drive Wheel:
4×2
Engine Capacity:
6 - 8L
Condition:
New
Product Name:
Drinking Water Carrier Truck
Capacity:
8000 Liter
Feature:
8 Ton
Engine:
Diesel 190HP
Driver Type:
LHD
Transport Package:
By 40"Hq Or By Cargo Bulk Shipment
Specification:
8400* 2500*3200 Mm
Trademark:
HOWO
Origin:
China
HS Code:
8705909990
Supply Ability:
500PCS/Week
Customization:
Available
After-sales Service:
10 Year
Warranty:
12 Month
Shipping Cost:
Contact The Supplier About Freight And Estimated Delivery Time.
 :
Support Payments In USD
Secure Payments:
Every Payment You Make On Made-in-China.com Is Protected By The Platform.
Refund Policy:
Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.
Manufacture:
Chengli Special Automobile Co.,Ltd
Packaging Details:
Nude
Supply Ability:
10unit per month
Highlight:

Stainless Steel Tanker Truck 5000 liters

,

Stainless Steel Water Truck 6000 Liters

,

Water Juice Milk Tank Truck

Product Description
HOWO Stainless Steel Milk Tanker Drinking Water Juice Milk Transport Milk Tanker Truck

The HOWO Stainless Steel Milk Tanker truck is a type of specialized vehicle designed for the hygienic transport of liquid food products such as milk, drinking water, and juice.

Here are some key features and specifications common to HOWO stainless steel milk tankers:

Key Features for Liquid Food Transport:
  • Tank Material: The tanker body is constructed from food-grade stainless steel, most commonly SS304-2B or similar, which is essential for maintaining the purity and safety of edible liquids.
  • Insulation: They typically feature a double-wall construction with an insulation layer, often Polyurethane (PUF) foam (commonly 60mm to 100mm thick), to maintain the temperature of the contents. This is crucial for transporting fresh milk and keeping the temperature rise within a very small margin (e.g., ≤1 ∘ C over 24 hours).
  • Compartments: Tanks can be configured with single or multiple independent compartments to allow for the transport of different liquid food products simultaneously or to manage bulk movement with surge control.
  • Cleaning System: Equipped with a CIP (Clean-In-Place) cleaning system with 360-degree rotating spray nozzles to thoroughly clean the interior of the tank and maintain sanitary conditions.
  • Fittings: Includes stainless steel manholes, valves, and piping to ensure that all parts in contact with the liquid are food-grade.
  • Pump: Often includes a stainless steel pump for efficient loading and unloading.
Common HOWO Truck Specifications (Can Vary by Model):

HOWO (a brand by Sinotruk) chassis are used for various tanker sizes. Capacities can range significantly, with common volumes including:

  • Light/Medium Duty: 4,000 Liters (4 CBM) up to 10,000 Liters (10 CBM)
  • Heavy Duty: 15,000 Liters (15 CBM) up to 25,000 Liters (25 CBM) or more.

Potable water tanker (also called drinking water tanker, stainless steel water tanker, agua potavelwater, tank truck, water truck, water lorry, water tanker, watering truck, Camión cisterna) is used to transport and supply potable water, widely used in drought relief.

We adopt non-toxic treatment inside tank or tank made of stainless steel, so it is very suitable for transporting drinking water.

HOWO Stainless Steel Tank Fresh Milk Tanker Truck 5000liters 6000liters Milk Transport Tank Truck Chassis:
  • CNHTC trucks , ISUZE, Beiben trucks , Shacman trucks , FAW trucks , Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks or others Chinese trucks Chassis
HOWO Stainless Steel Tank Fresh Milk Tanker Truck 5000liters 6000liters Milk Transport Tank Truck Technical Date:
Category Typical Specification Range Notes
Tanker Volume 5000 Liters (5.0 CBM) to 6000 Liters (6.0 CBM) Full water capacity often cited as 6000L for a nominal 5000L-6000L truck.
Overall Dimensions (L×W×H) Approx. 5,990×2,150×2,520 mm (Varies by chassis) Specific dimensions depend on the exact chassis and tank design.
Gross Vehicle Weight (GVW) Approx. 7,360 kg to 9,100 kg Varies significantly based on specific model and configuration.
Curb Weight Approx. 3,675 kg to 3,900 kg
Rated Load Capacity/Payload Approx. 3,500 kg to 5,085 kg
Chassis Brand SINOTRUK HOWO
Drive Type 4×2 (Standard) Sometimes 4×4 for off-road/difficult terrains is available.
Wheelbase Approx. 3,280 mm to 3,800 mm
Engine Brand/Model Weichai (e.g., WP2.3NQ130E61, WP3NQ160E61) or Yunnei (e.g., YN4102) Common engine choices for this size.
Engine Horsepower (HP) 116 HP to 160 HP (Lower end for smaller models/Euro standards) Higher power options may be available.
Emission Standard Euro 4, Euro 5, or Euro 6 (depending on market) Common compliance standards.
Transmission Manual, typically 5 or 6 forward gears
Tire Specification E.g., 7.50R16, 245/70R19.5 Radial steel tires are standard.
Max. Driving Speed Approx. 90 km/h
Tank Material (Inner) SUS304-2B Food Grade Stainless Steel Mandatory for food/milk transport.
Inner Tank Thickness Approx. 3.0 mm to 4.0 mm
Insulation Layer Polyurethane (PU) Spray Foam 80 mm to 100 mm thickness is common.
Outer Shell Material Stainless Steel (304 or 201 grade) Often thinner, e.g., 1.0 mm to 2.0 mm.
Insulation Performance Temperature rise/fall ≤2∘C over 24 hours A key feature for maintaining milk freshness.
Compartments Single Compartment (or Multi-compartment on request) Inner anti-surge baffles are usually included.
Cleaning System CIP (Clean-In-Place) Automatic Cleaning System Equipped with cleaning balls for 360∘ cleaning.
Accessories Manhole, Breathing Valve, Stainless Steel Outlet Valve/Pipe, Rear Operation Box, Movable Ladder.
Chassis Specification
Item No. Parameters
Chassis Brand HOWO Overall Dimension 5500×1715×2055mm
Gross Vehicle Weight 4015kg Curb Weight 2480 kg
Loading Weight 1405 Kg Wheel Base 2800 mm
Cabin Single, Left Hand Driving
Engine HOWO
Overhang( Front/Rear) 1140/1810(mm)
Fuel type Diesel
Axle load 1800/3500(kg)
Angle(Approach/departure) 16/22(°)
Transmission/Gearbox 5 Forward & 1 Reverse Gear
Brake System Pneumatic
Steering Gear Power Assistant
Tire 6.00-15, 6 Pieces with 1 spare tire
Maximum speed 90(km/h)
Tank specification 5,000 liters, tank thickness is 3 mm, seal is 4 mm
Tank Material: Stainless or Aluminium alloy
HOWO Stainless Steel Milk Tanker Drinking Water Juice Milk Transport Milk Tanker Truck details :
  • Tank Material: Food Grade Stainless Steel (most commonly SS304-2B or similar food-level grade). All interior surfaces, pipes, and valves that contact the liquid are typically made of stainless steel.
  • Tank Structure: Usually has three layers:
    • Inner Layer: Food grade stainless steel (e.g., 3mm to 4mm thickness).
    • Insulation Layer: Thick thermal insulation (e.g., 80mm to 120mm polyurethane foam).
    • Outer Layer: 2mm thickness stainless steel or similar material.
  • Thermal Insulation Function: Excellent insulation to prevent spoilage. The typical performance standard is that the medium temperature rise/fall is ≤1 ∘ C over 24 hours.
  • Cleaning System: Equipped with a CIP (Clean-In-Place) system including cleaning poles and 360 ∘ rotating cleaning nozzles for automatic, thorough cleaning and sterilization of the inner tank.
  • Compartments: Tanks can be single-compartment or multi-compartment (separate chambers) to transport different liquids simultaneously or to enhance stability by minimizing liquid movement (sloshing).
  • Fittings: Stainless steel manholes, breather valves, pipelines, and discharge valves.

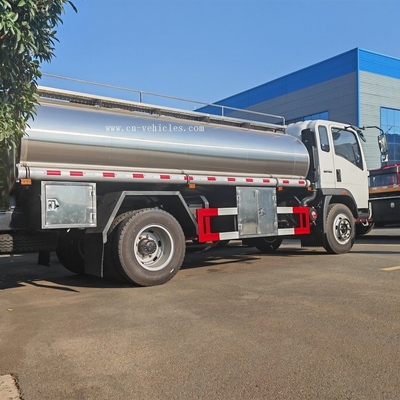

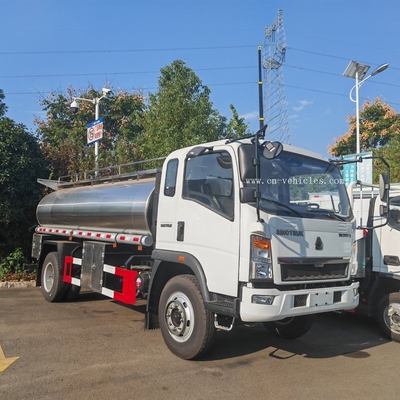

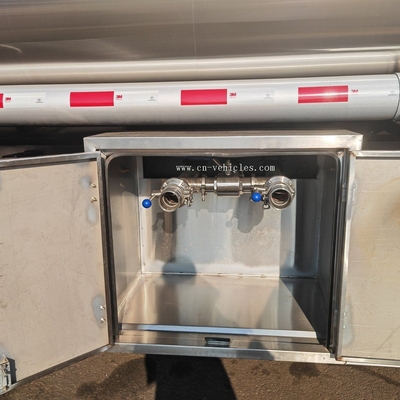

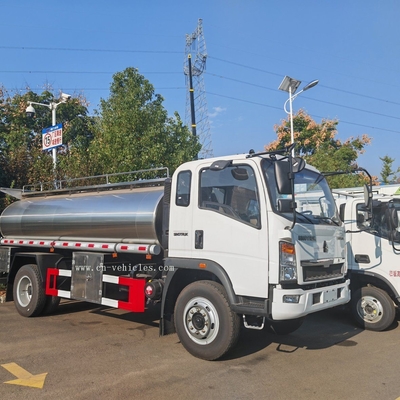

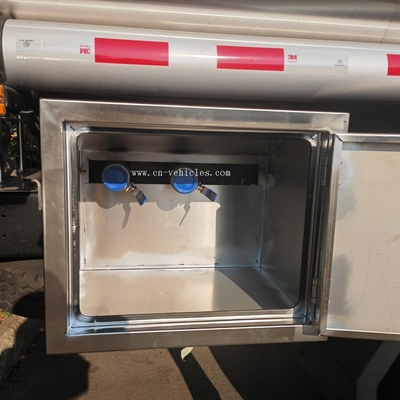

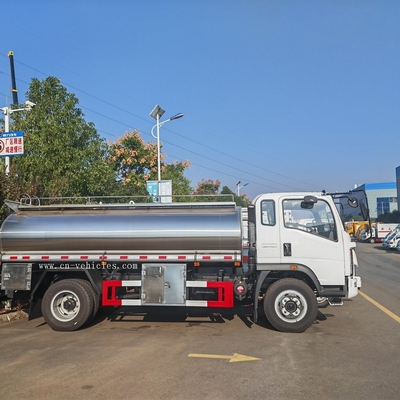

HOWO Stainless Steel Milk Tanker Drinking Water Juice Milk Transport Milk Tanker Truck 0 HOWO Stainless Steel Milk Tanker Drinking Water Juice Milk Transport Milk Tanker Truck 1
