| Brand Name: | Foton Auman |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

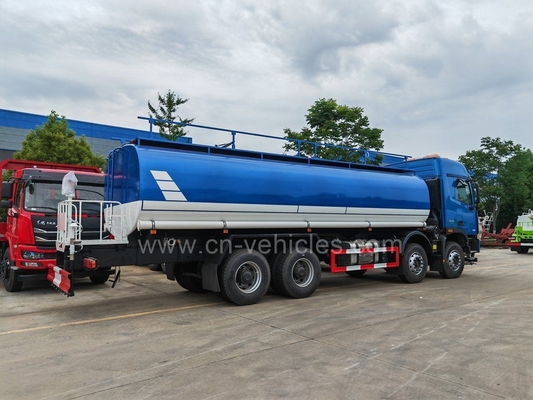

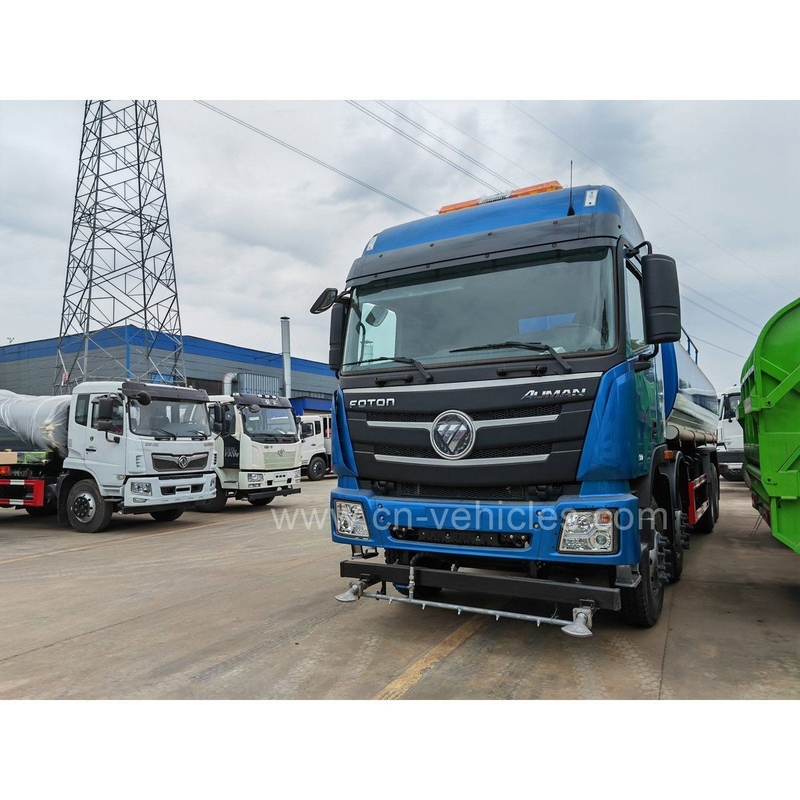

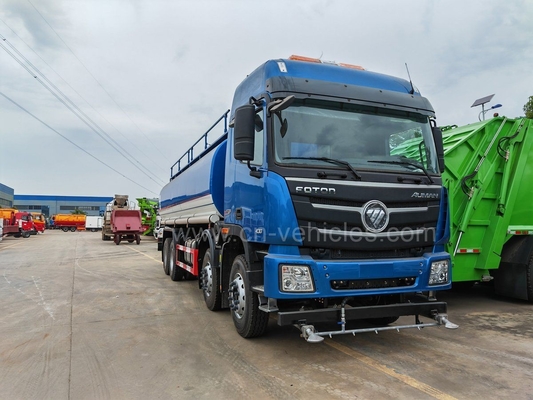

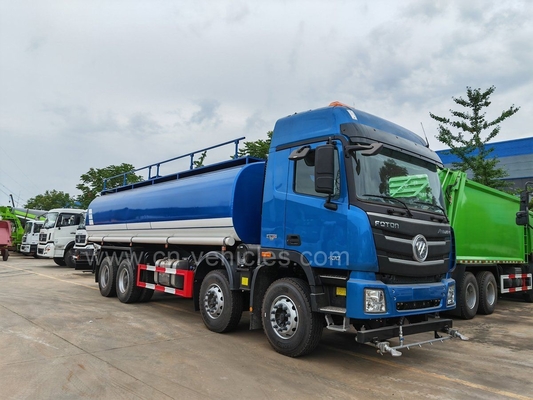

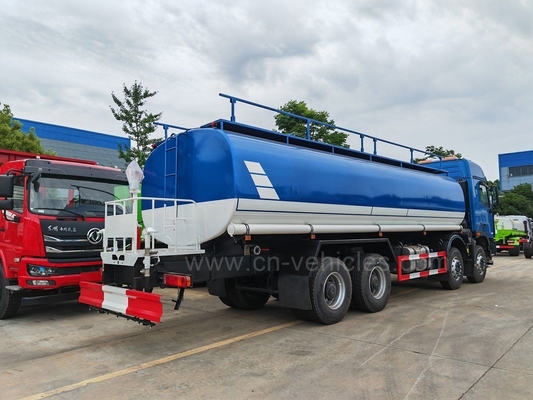

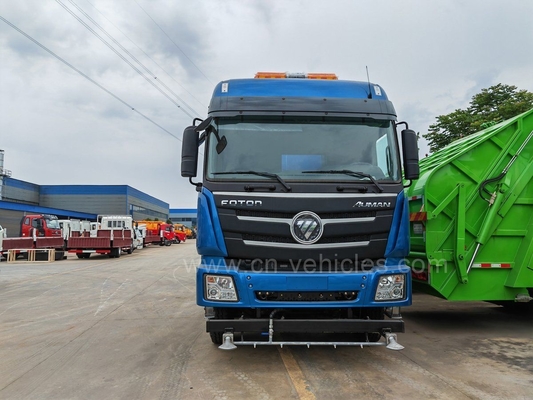

Foton Auman 30,000 Liter 12-Wheel Water Delivery Tanker Truck is a heavy-duty specialized vehicle built for large-capacity liquid transport, which can be configured for water or other liquids.
Tank Material: Stainless Steel SS304 – food-grade, corrosion-resistant, suitable for drinking water or non-corrosive liquids
The stainless steel tank is mounted on the chassis and includes equipment for water handling, such as:
Equipped with a high-flow water pump (often Chinese brand) capable of both self-priming (suction from external sources like ponds or rivers) and pressure discharge.
Suction Height: Usually ≥7 meters.
Full Tank Suction Time: Typically <15 minutes.
Standard functions include:
Water Cannon (High-Pressure Gun): Located on a rear working platform, it can typically spray water columns ≥35 meters and is adjustable for straight flow, heavy rain, or mist for firefighting, irrigation, or high-level washing.
Piping: All piping and valves in contact with the water will be stainless steel to maintain the SS304 food-grade standard (especially for drinking water transport).
Manhole: Top-mounted, sealed manhole for inspection and filling.
Safety/Convenience: Includes a rear working platform with a ladder, fire hydrant joints for emergency filling, and anti-wave baffles installed inside the tank to enhance stability during transit.
| Feature | Typical Specification | Notes |
|---|---|---|
| Chassis Brand | Foton Auman (Often the 8x4 series) | Foton is a major Chinese commercial vehicle manufacturer. |
| Drive Type | 8x4 (12-Wheel) | This configuration provides the necessary load capacity and stability for a 30,000-liter payload. |
| Capacity | 30,000 Liters (30 m³)* | This is the nominal volume of the tank. |
| Material | Stainless Steel (SS304) | Crucial for potable (drinking) water transport, as SS304 is food-grade and corrosion-resistant. Carbon steel tanks are also an option for non-potable water. |
| Tank Shape | Elliptical or Square-Round | Designed for stability and complete discharge. |
| Component | Typical Specification | |
| Engine | Cummins, Weichai, or other heavy-duty Chinese brands. | |
| Horsepower (HP) | Typically 300 HP to 380 HP or higher, to handle the large payload. | |
| Transmission | Manual, 10-speed or 12-speed heavy-duty gearbox (e.g., FAST Gear). | |
| Emissions Standard | Varies by export market (Euro II, III, IV, V, or VI). | |
| Axles | Heavy-duty axles (e.g., 6.5T or 7.5T front axles and 13T double reduction rear axles). | |
| Cab | Auman GTL, EST, or a similar heavy-duty cab, often with a sleeper and air conditioning. | |
This specific truck is primarily used for potable water delivery, municipal water distribution, industrial cooling, large-scale dust suppression, and emergency water supply.
The Foton Auman 30,000 Liter (30 m³) Water Delivery Tanker Truck, particularly with an SS304 stainless steel tank, is a heavy-duty vehicle designed for large-volume, high-quality liquid transport, often for potable water.
Since a 30,000L rigid tanker is a custom-built product, specific parameters can vary between manufacturers (e.g., Chengli Special Automobile, etc.), but the core configuration is based on the robust Foton Auman 8x4 chassis.
| Component | Specification Details | Importance |
|---|---|---|
| Chassis Model | Foton Auman (Often GTL or EST series) 8x4 | Provides the necessary Gross Vehicle Weight (GVW) rating to handle the 30,000 kg (30-ton) payload. |
| Engine | High-horsepower diesel engine (e.g., Cummins or Weichai) | Typically 300 HP to 380 HP or higher to manage the weight and provide sufficient power for the pump. |
| Transmission | Manual, heavy-duty gearbox (e.g., 10-speed or 12-speed FAST Gear) | Optimized for high torque and varying road conditions. |
| Tires | 12.00R20 or 11.00R20 radial tires (12 tires total) | Standard heavy-duty tire configuration for the 8x4 layout. |
| Max. Speed | Approx. 85 - 90 km/h | Typical top speed for a heavy-duty specialized truck. |
| Cabin | Auman heavy-duty cab (with sleeper berth, A/C) | Provides driver comfort for long-haul delivery operations. |
| Component | Specification Details | Importance |
| Tank Capacity | 30,000 Liters (30 m³) | Maximum effective volume. |
| Tank Material | Stainless Steel 304 (SS304) | Food-Grade material, which is essential for transporting potable water, milk, or other sensitive liquids, as it resists corrosion and maintains hygiene. |
| Tank Shape | Elliptical or Square-Round | Design includes internal baffles (anti-wave plates) to minimize liquid sloshing and enhance vehicle stability during braking or turning. |
| Tank Thickness | Typically 3 mm to 5 mm (SS304 steel) | Thickness is engineered for structural integrity and longevity. |
| Compartments | Can be single-compartment or divided into multiple smaller compartments for different delivery points. | Multi-compartment tanks are common to manage partial loads. |
| Component | Specification Details | Functionality |
| Water Pump | High-power centrifugal self-priming pump, often stainless steel. | Used for both suction (self-priming) and pressure spraying. |
| Suction Lift | ≥7 meters (Max. vertical height the pump can draw water from). | Allows the truck to draw water from ground sources (ponds, pools, etc.). |
| Water Cannon | High-pressure, adjustable nozzle mounted on a rear platform. | Range: ≥35 meters. Used for long-distance spraying, high-level washing, and emergency fire suppression. |
| Sprinkler System | Includes Front Flush (high-pressure nozzles), Rear Sprinklers (fan-shaped), and Side Spray Nozzles. | Sprinkling Width: ≥14 meters. Primarily for road cleaning and wide-area dust suppression. |
| Piping & Valves | All pipelines and valves in contact with the water are typically stainless steel (or non-toxic materials) with fire hydrant connection ports. | Ensures the purity of the potable water being transported. |
| Rear Platform | Non-slip steel platform with safety handrails and ladder. | Serves as the operator's working area for the water cannon and control valves. |
Chengli Special Automobile Co., Ltd. is a major Chinese manufacturer specializing in the research, development, production, and sales of a vast range of special purpose vehicles and trucks.
It is a core member and subsidiary of the larger CLW Group (Chengli Automobile Group Co., Ltd.).
Here is an overview of the company's key details:
Chengli produces an extensive and diverse portfolio of over 800 types of specialized trucks. Their main categories include:
Chengli holds comprehensive production and quality certifications necessary for both domestic and international markets, including:
The company serves both the domestic Chinese market and has a strong export presence, selling its vehicles to over 80 countries and regions worldwide, particularly in:
Chengli Special Automobile Co., Ltd. has a substantial and broad international market presence, exporting its wide range of specialized vehicles to numerous countries across multiple continents.
The company's overseas strategy is primarily focused on regions that have high demand for public works, infrastructure, and heavy-duty logistics equipment.
Here is a breakdown of their main overseas markets and key products:
Chengli's products are exported to over 80 countries and regions globally, with a strong focus on developing and emerging markets. The main target regions consistently mentioned are:
Given the market focus (municipal services, logistics, and construction), the most popular export products include:
