| Brand Name: | Donfeng Kr |
| Model Number: | CLW |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |

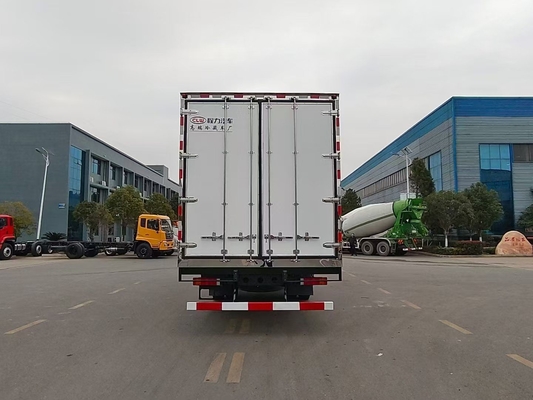

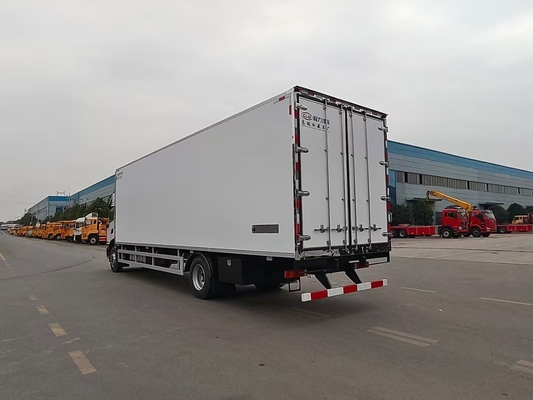

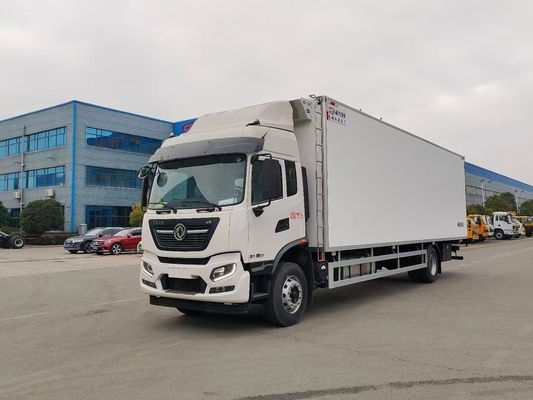

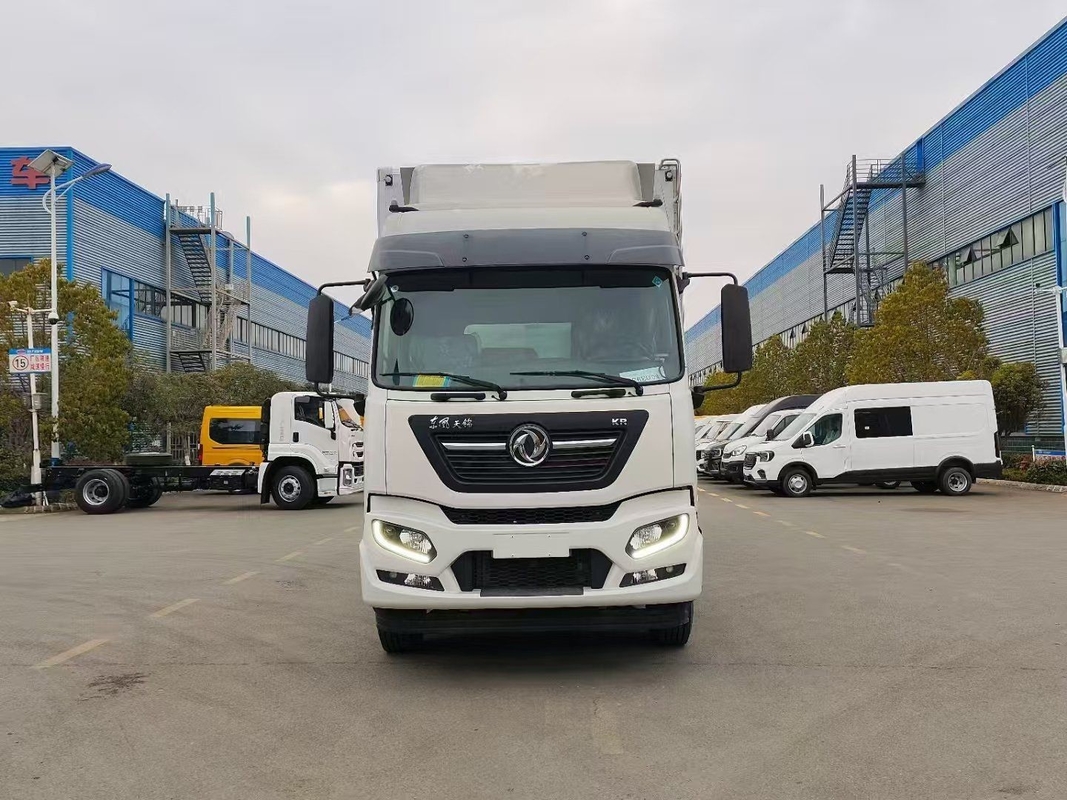

The Dongfeng KR refrigerated/freezer van truck equipped with a Cummins engine is a popular configuration for medium- to heavy-duty cold chain logistics.
The "Dongfeng KR" (or KingRun/Tianjin) line refers to the specific truck chassis model, which is frequently outfitted with an insulated body and a refrigeration unit by specialized vehicle manufacturers.
Refrigerator truck (also called refrigerator wagon, refrigerated truck, refrigerated boxcar, freezer vehicle, freezer wagon, temperature controlled truck, refrigerator car, preservation vehicle) is used to carry perishable stuff at specific temperatures.
The cooling device could be of famous brand such as Carrier, Thermoking etc. There are two types of power driving ways, one is powered by vehicle engine through PTO, the other is driven by independent power unit.
| Specification | Common Range/Examples |
|---|---|
| Engine Model | Dongfeng Cummins B series (e.g., B6.2NS6B245, B6.7NS6B290) or ISDe series (older models) |
| Horsepower | 190 HP to 290 HP (Commonly 245 HP or 290 HP) |
| Displacement | Approximately 6.2L to 6.7L |
| Emission Standard | Euro III up to Euro VI (depending on the market) |
| Transmission | Manual Fast (or similar) 8-speed (with high/low gears) |
| Driving Type | 4x2 (two axles, four wheels powered) |
| Specification | Common Range/Examples |
| Box Length | 6.8 meters (m) to over 7.8 meters (m) |
| Box Volume | Approximately 41 cubic meters (CBM) to 48 CBM |
| Insulation Material | Fiber-Reinforced Plastic (FRP) for inner and outer skin, with a core of high-density Polyurethane foam (typically 8cm thick or more). |
| Standard Features | Stainless steel rear door hardware, non-slip patterned aluminum floor plate. |
| Optional Features | Hydraulic tailgate, side door(s), aluminum alloy ventilation grooves (T-rails) on the floor, meat hook slide rails, and cargo securing devices. |
| Item No. | Parameters |
|---|---|
| Overall Dimension | 6995x2310x2570 mm |
| Gross Vehicle Weight | 7345kg |
| Curb Weight | 3550kg |
| Loading Weight | 4895Kg |
| Wheel Base | 3800mm |
| Front/rear Tread | 1120/2075 mm |
| Approach/Departure Angle | 21/20degree |
| Front Axle | 2850kg |
| Rear Axle | 4645kg |
| Gearbox | LC5T26, 5 speed, manual control. |
| Engine | 4DX22-110, Diesel Engine, 4 in-line cylinder |
| Engine horsepower | 108HP EURO II |
| Displacement | 3.66 L (Diesel) |
| Full loading Fuel Consumption Rate | Maximum 215 g/kW.h |
| Max Driving Speed | 90 km/h |
| Cabin | 2 Passenger allowed |
| Tire | 8.25-16 LT (7 pieces) |
| Carriage Body | |
| Size: | 5100x2100x1400mm |
| Body Material | Strong Fiberglass Inner and Outer Wall, with 8cm Middle Polyfoam Insulation. |
| Refrigerator | High Quality Hanxue Refrigerator, Lowest Cooling Temperature negative 18 centi-degree (negative 608 Fahrenheit degree) |
| LOGO | Company Logo or any advertisement can be printed on the carriage body according to the customer's design. |
The Dongfeng KR refrigerated/freezer van truck with a Cummins engine is primarily designed for medium-to-heavy-duty cold chain logistics and distribution. Its application is centered around transporting temperature-sensitive goods that require continuous chilling or freezing over medium to long distances.
Here are the key applications and the types of cargo it typically handles:
1. Food and Beverage Cold Chain
This is the most common application, requiring precise temperature control to maintain freshness and prevent spoilage.
Frozen Goods: Deep-freeze transport (−15 ∘ C to −18 ∘ C or lower) for:
Refrigerated Goods: Chilled transport (0 ∘ C to 5 ∘ C) for:
Chengli Special Automobile Co., Ltd. (often referred to as CLW Group or Chengli) is one of the largest and most prominent specialized vehicle manufacturers in China.
It is renowned for producing a vast range of special purpose vehicles and is a major player in the global market for specialized trucks. The company is based in Suizhou City, Hubei Province, which is known as the "City of Special Truck" in China.
Established in Sep. 2004, Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB (14 millions US Dollars) and total capital 6,000,000,000 (840 millions US Dollars).
| Region | Example Countries/Areas Mentioned |
|---|---|
| Africa | Nigeria, Ghana, Tanzania, Zambia, Angola, Algeria, Congo, Mali, Niger, Ethiopia, Sudan, South Africa |
| Asia | Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Myanmar, Philippines, Singapore, Thailand, Cambodia, Laos, Pakistan, Saudi Arabia (Middle East) |
| South America | Peru, Bolivia, Panama, Chile, Venezuela |
| Other | Russia, New Zealand, Australia |
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
