Brand Name: | Foton |
Model Number: | CLW |
MOQ: | 1 |
Price: | 15000-35000 per unit |
Payment Terms: | 50% Deposit,Balance should be paid before ship out |
Supply Ability: | 10unit per month |

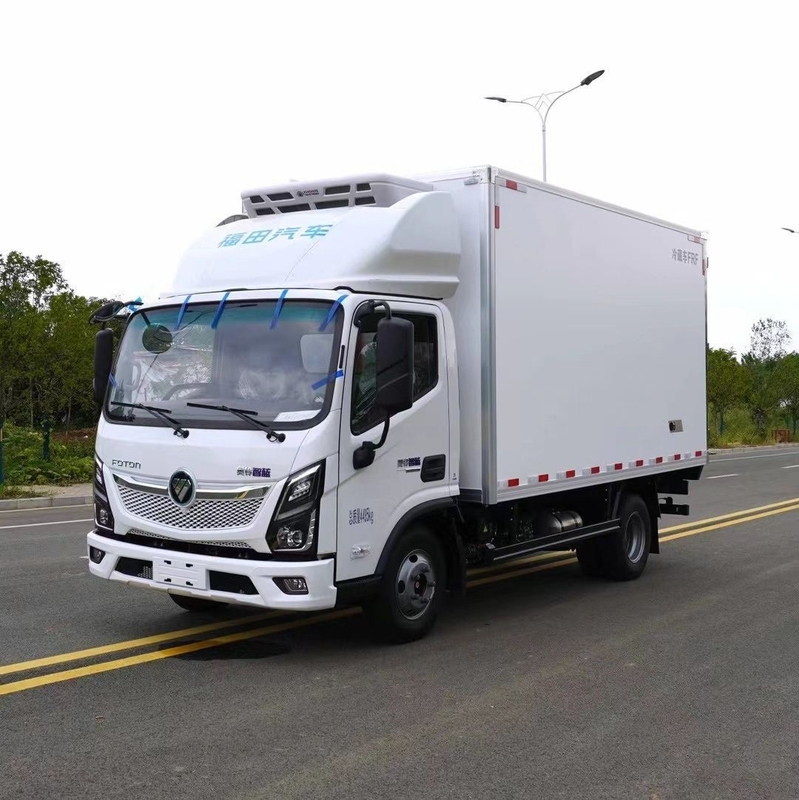

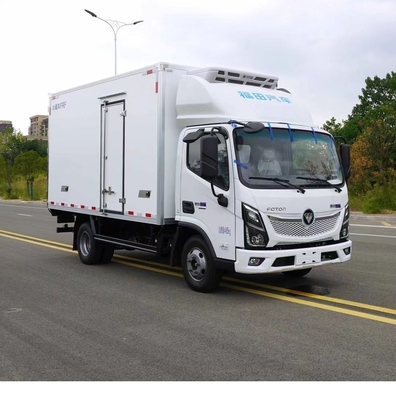

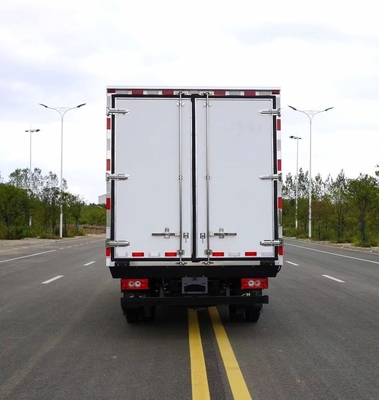

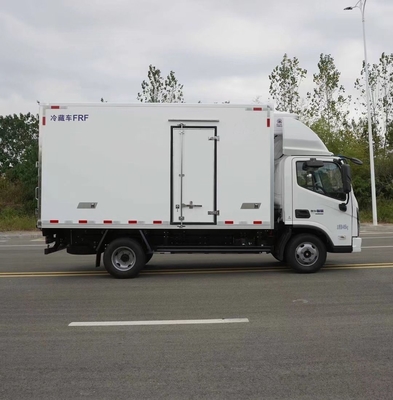

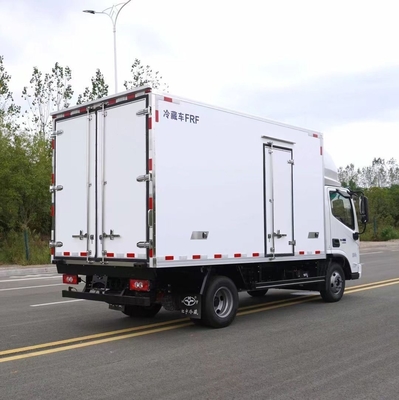

Foton produces a range of electric cargo trucks that are configured as refrigerated light trucks for food transport, targeting the cold chain logistics industry, especially for last-mile delivery in urban areas.
A refrigerated truck is a closed box transporter for transporting frozen or fresh cargo, a refrigerated transport unit equipped with a refrigeration unit and a refrigerated transport vehicle for polyurethane insulation. The 10 ton refrigerated truck is commonly used for transporting frozen foods (refrigerated vehicles) and dairy products(milk transport vehicles), fruits and vegetables (fresh goods vehicles), vaccine drugs (vaccine transport vehicles), etc. The refrigeration unit has the characteristics of simple structure, easy operation,reliable operation, low energy consumption, large cooling capacity, low noise and easy installation and maintenance.
Feature | Typical Specification Range (Example Models) |
Vehicle Type | Pure Electric Refrigerated Light Truck/Van |
Gross Vehicle Weight (GVW) | 4,495 kg to 6,000 kg (Approx. 4.5 to 6 Tons) |
Payload Capacity | Approx. 1,000 kg to 3,600 kg (Varies significantly by model) |
Overall Dimensions (L*W*H) | Approx. 5,995 mm * 2,100–2,260 mm * 3,080–3,300 mm |
Refrigerated Box Dimensions (L*W*H) | Approx. 4,080 mm * 2,100 mm * 2,000–2,100 mm (Approx. 17–18 CBM) |
Refrigeration Temperature Range | Typically −18∘C to −15∘C (Freezer) or −5∘C to +10∘C (Chiller) |
Battery Type | Lithium Iron Phosphate (LFP), e.g., CATL |
Battery Capacity | 81.14 kWh to 100.46 kWh (Common capacities) |
Electric Motor (Peak Power) | 115 kW to 130 kW (Approx. 154 - 174 HP) |
Electric Motor (Max. Torque) | 300 Nm |
Driving Range (Full Load/Estimate) | 180 km to 400 km (Range ratings vary greatly, e.g., WLTP/NEDC) |
Maximum Speed | 90 km/h to 105 km/h |
Charging Time (DC Fast Charge) | Approx. 1.5 - 4 hours (from 20% to 100% or 80%) |
Vehicle model | AUMARK-C38 | |
Cabin | Single row/W1995/right rudder | |
Whole vehicle main dimensions | Overall dimensions (LxWxH)mm | 6725*2100*2280 |
Wheel base(mm) | 3800 | |
Weight data | Curb weight(kg) | 3305 |
Gross vehicle weight(kg) | 6500 | |
Persons in cab | 3 | |
Whole vehicle main performance | Max. speed(km/h) | 95 |
ENGINE | Model | FTTB065B |
Engine type | Electric | |
Battery | 100.46KWh | |
Motor | FTTB065B | |
Nedc | 280 | |
Gearbox | Model | 6TS55 |
Front axle | Type/Mainreducetion ratio | 2.5T |
Rear axle | Type/Mainreducetion ratio | 6.0T/4.875 |
Suspension | Front suspension/Leaf spring number | 9 |
Rear suspension/Leaf spring number | 11+7 | |
Brake system | Service brake | Drum pneumatic braking |
Parking brake | Brake gas brake | |
Auxiliary brake | Engine exhaust brake | |
Wheels and tyre size | 6+1(8.25R16) |
Food Transport:
Pharmaceutical and Medical Cold Chain:
Other Temperature-Sensitive Cargo:
Founded: Established in September 2004.
Headquarters: Located in Suizhou City, Hubei Province, China, which is known as the "capital of China's special purpose vehicles."
Group Status: It has grown into a large, diversified group company (CLW Group) integrating R&D, manufacturing, sales, and services for complete vehicles, special purpose vehicles, new energy vehicles, and parts.
Products and Specializations:
The company produces a wide and diverse range of over 800 types of special-purpose vehicles, including:
Market and Scale:
Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).
Export Volume: Chengli exports its "CHENGLIWEI (CLW)" brand special trucks to a significant number of countries and regions. The company's products are exported to more than 50 (and possibly over 80) different countries and regions worldwide.
Target Regions: Their main overseas markets are concentrated in several key areas:
Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
