HOWO Carrier Frozen Meat Transport Refrigerated Freezer Refrigerator Van Refrigeration Units Vehicle

Chassis Brand: Sinotruk HOWO (China National Heavy Duty Truck Group). HOWO is known for its heavy-duty and medium-duty truck series (like the 4x2, 6x4, and light truck models) that provide robust platforms for special vehicles.

Driving Type: Available in various configurations:

• Light Duty (Urban/Regional): Typically 4x2 with lower tonnage.
• Heavy Duty (Long-Haul/High Payload): Often 6x4 for higher capacity (up to 30,000 kg payload).

Engine: Powerful diesel engines (e.g., Sinotruk or MAN variants) with various horsepower ratings (e.g., 110 HP up to 371 HP for heavy-duty models) to handle the load and power the refrigeration unit.

Construction: The body is a crucial component, utilizing a sandwich panel structure for maximum thermal insulation.

Insulation Material: High-density Polyurethane (PU) foam or XPS extruded polystyrene board in the core. Thickness is often around 80mm to 100mm to meet freezer requirements.

Surface Material (Skin): Inner and outer layers are typically made of Fiberglass Reinforced Plastic (FRP/GRP) or color steel plate, with stainless steel often used for the interior floor and seafood transport to ensure cleanliness and corrosion resistance.

Body Features for Frozen Meat:

• Meat Hooks and Rails: The most distinct feature for frozen meat is the installation of aluminum alloy guide rails in the ceiling, equipped with meat hooks to suspend the carcasses or cuts. This prevents the meat from stacking, which maintains air circulation and avoids damage.
• Ventilation: T-shaped or grooved aluminum alloy flooring/ventilation channels are often installed to allow cold air from the evaporator to circulate freely beneath the cargo, ensuring even and stable temperatures.
• Doors: Rear double doors are standard, with an optional side door for flexible loading/unloading.

Refrigeration Unit Brand: The "Carrier" in the name refers to the use of a leading global brand like Carrier Transicold (or similar competitors like Thermo King). Chengli offers flexibility in unit selection.

Unit Type: Typically a Non-Independent (engine-driven) or Independent (diesel-powered) unit, with the heavy-duty units (like Carrier S850) used for long-haul freezer applications.

Temperature Range (Freezer): To transport frozen meat, the unit must be a Freezer Unit capable of maintaining a temperature as low as −15 ∘ C to −20 ∘ C (or even lower, such as −30 ∘ C on some models) to ensure the cargo remains deep-frozen.

Optional Features:

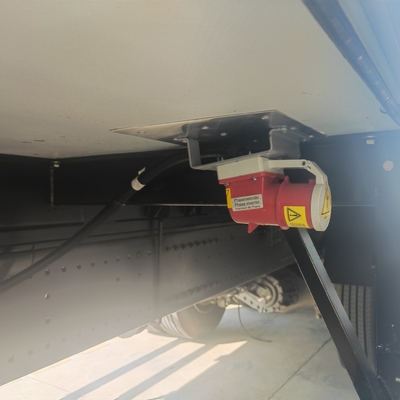

• External Power Supply: Allows the unit to be plugged in and run without the truck engine (for overnight parking or staging).
• Temperature Recorder/Printer: A real-time monitoring and printing device for legally required temperature chain verification

Refrigerator truck is also called refrigerator truck, refrigerator wagon, refrigerated box truck, freezer wagon, temperature controlled truck, freezer truck. It is used to transport frozen or fresh goods, fresh Milk, fresh vegetables and fruits, vaccine drugs etc. It is equipped with a refrigeration unit and polyurethane insulated van.

• Frozen Meat Transport: This is a primary application, ensuring frozen meat (like beef, pork, poultry) maintains a consistently low temperature (often −10 ∘ C to −20 ∘ C or lower) to prevent spoilage and maintain quality over long distances. Some vehicles are specifically equipped with meat hooks and aluminum rails for hanging carcasses or cuts.
• Frozen Food: Transport of all types of frozen meals, vegetables, fruits, and prepared foods.
• Dairy Products: Transport of milk, yogurt, cheese, and especially ice cream (which requires deep-freezing).
• Seafood: Transport of fresh or frozen fish and shellfish.
• Fresh Produce: Transport of fruits and vegetables that require chilling (but not freezing) to extend shelf life.

• Vaccines and Medicines: Transport of temperature-sensitive pharmaceutical products that must adhere to stringent cold chain requirements to maintain effectiveness.

• Floral Industry: Transport of cut flowers and plants that need a controlled, cool environment to prevent wilting.
• Catering and Events: Moving prepared food and beverages for large-scale catering services and events.

The refrigerated truck is the closed van truck that is used to transport the frozen or fresh goods. This truck is made up of vehicle chassis, insulation box, refrigeration unit and temperature recorder, etc.

It is used for short-distance transportation in major supermarkets, vegetable markets, and stores in the city. According to customer requirements, it is converted into refrigerated trucks, insulated vehicles, refrigerated trucks, etc. for various purposes such as transportation of medicines (medical vaccine transport vehicles), vegetables, fruits, fresh meats, frozen meats, seafood, and chickens.

1. The "sandwich" board bonding type assembled by pieces is currently adopted by large domestic refrigerating truck manufacturers, and the refrigerating truck produced by this technology has high heat insulation performance.
2. Refrigerated car body structure: Polyester wet plate making process and glass fiber reinforced stainless steel column frame structure, using the most advanced fifth-generation fully enclosed polyurethane plate bonding method in the world.
3. The material of the panel: the inner and outer wall panels are made of domestic high-quality mechanism 2.2mm FRP; the intermediate insulation material is made of thick imported polyurethane; the thickness of the car body is 80mm; the thickness of the door is 80mm; the overall aluminum plate on the bottom plate, the color plate below, the imported polyurethane;
4. Accessories: 2.5mm aluminum alloy edging around the car, stainless steel wrap angle, stainless steel door lock, anti-collision rubber 4, stainless steel door frame, stainless steel hinge, energy saving lighting inside the box.
5. Refrigeration unit: The well-known domestic brand of the refrigeration unit Hanxue or Huatai overhead unit, the temperature of the car is 0 to 5 degrees and 18 degrees (optional with imported units Korea Hana, American Carrier, etc.).

• Target Temperature: Typically a freezer temperature range, such as −15 ∘ C to −18 ∘ C, suitable for frozen meat, poultry, and deep-frozen products. Some units can achieve −20 ∘ C or lower.
• Refrigeration Unit: Often an imported, high-performance unit to ensure reliability and rapid temperature pulldown.
• Brands: Commonly Carrier or Thermo King (USA brands), or high-quality domestic Chinese brands (e.g., Hanxue, Huatai).
• Type: Usually a non-independent (engine-driven) or independent (separate diesel engine) unit, mounted on the nose of the box.
• Features: Constant evaporator airflow, robust design, low-noise capabilities, and sometimes an optional external power supply for standby cooling when the vehicle is stopped.

• Construction: Typically a "sandwich" panel structure using a fully enclosed polyurethane plate bonding method. This ensures high thermal insulation and structural strength.
• Insulation Material: High-density polyurethane (PU) foam as the core insulation layer.
• Thickness: Commonly 80mm to 100mm for freezer-grade applications.
• Interior/Exterior Panels:
  • Exterior: High-quality Fiberglass Reinforced Plastic (FRP) or colored steel plate.
  • Interior: Often FRP or sometimes sanitary stainless steel (especially for seafood/meat).
• Floor: Aluminum patterned/skid plate, or FRP/stainless steel skid plate. Often includes T-shaped ventilation grooves or aluminum alloy rails to ensure proper cold air circulation under and around the cargo.
• Doors & Hardware: Usually stainless steel door locks, door frame, and hinges, with good door seal integrity.

• Location: Headquartered in Suizhou City, Hubei Province, China, which is known as the "Capital of China's special purpose vehicles."
• Establishment: The company's predecessor was founded in September 2004.
• Scope: Chengli is a large-scale manufacturer with a wide and complete range of qualifications for special vehicle production in China.
• Main Products: The company produces a vast range of special-purpose trucks (often over 800 types), including:
  • Sanitation Vehicles: Garbage trucks (compactors, hook lifts, etc.), water sprinkler trucks, sewage suction trucks, road sweepers.
  • Tanker Trucks: Fuel tank trucks, LPG tankers, chemical liquid tankers, milk tank trucks, and pressure vessels.
  • Construction/Engineering Vehicles: Dump trucks, truck-mounted cranes, concrete mixer trucks, high-altitude operation/aerial platform trucks, wrecker/tow trucks.
  • Logistics & Others: Refrigerated trucks, van trucks, fire fighting trucks, ambulances, mobile advertising (LED) trucks, and semi-trailers.
• Certifications: Chengli holds numerous major certifications, including:
  • ISO 9001 (Quality Management)
  • ISO 14001 (Environmental Management)
  • OHSAS 18001 / ISO 45001 (Occupational Health and Safety Management)
  • China Compulsory Certification (CCC)
  • Certifications for pressure vessels (A2, C2, C3) and international standards like ASME and ADR, which are essential for many of their products.

Established in Sep. 2004, Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

• Africa: This is a major market for Chengli, with exports to a large number of countries, including but not limited to:
  • East Africa: Tanzania, Kenya, Uganda, Ethiopia, Sudan, South Sudan.
  • West Africa: Nigeria, Ghana, Senegal, Mali, Benin, Niger, Cameroon.
  • Others: Angola, Algeria, Mozambique, Libya, Congo.
• Southeast Asia / Asia: This region is a significant market due to proximity and demand for specialized logistics and municipal vehicles.
  • Vietnam, Mongolia, Philippines, Myanmar, Thailand, Cambodia, Laos, Malaysia.
• South America: They have a presence here, exporting to countries like:
  • Chile, Peru, Bolivia, Panama, Venezuela.
• Middle East / Central Asia: The market includes countries such as:
  • Iraq, Kazakhstan, Uzbekistan, Russia, Afghanistan.
• Oceania: Countries like Australia and New Zealand are also listed as export destinations.

Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mongolia, Philippines, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, Uzbekistan, Kyrghzstan, Tanzania, Zambia, Nigeria, Australia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and also truck body for client drawing
