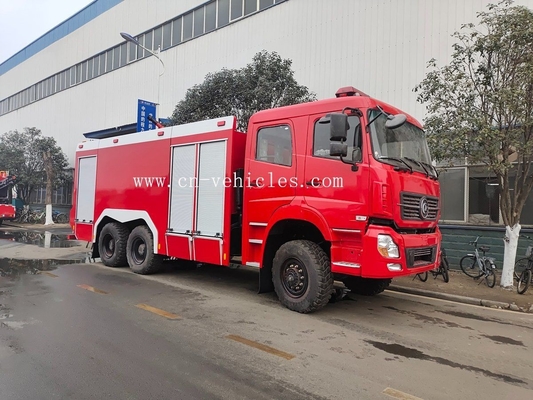

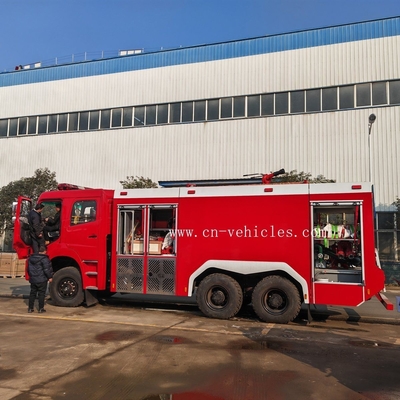

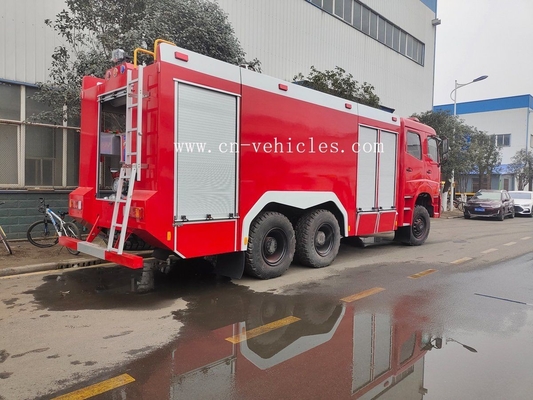

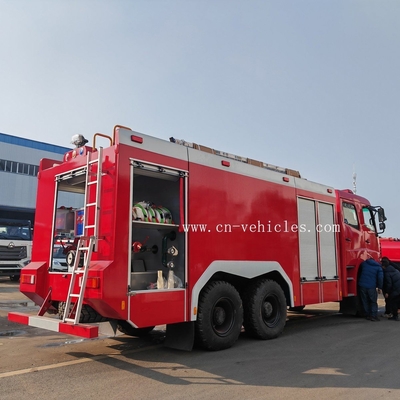

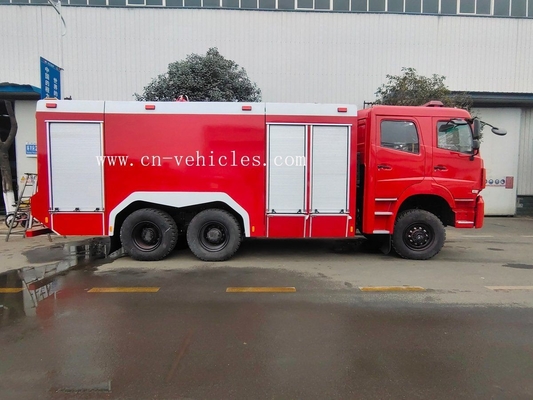

CLW Brand 6*6 Full Driver Fire Fighting Rescue Foam Water Tank Fire Fighting Equipment Truck

This 6×6 fire truck from CLW Group (Chengli Special Automobile Co., Ltd.) is engineered for rugged conditions where normal fire trucks cannot operate. Featuring full-time all-wheel drive (6x6), a high-capacity water and foam tank, and advanced firefighting equipment, it is ideal for forests, oil fields, airports, mining zones, and military applications.

CLW Brand 6x6 Full Driver Fire Fighting Rescue Foam Water Tank Fire Fighting Equipment Truck is a heavy-duty, off-road capable vehicle designed for various firefighting and rescue operations, often built on chassis like Dongfeng.

Based on typical specifications for this type of truck, here are some key features and parameters:

• Drive Type: 6x6 All-Wheel Drive (AWD), making it suitable for rough terrain and off-road rescue.
• Function: Combines water and foam firefighting capabilities with rescue equipment storage.
• Chassis: Often built on a robust chassis (e.g., Dongfeng, often with a "Full Driver" or double-row cab for a larger crew).
• Crew Capacity: Typically 5-6 persons (e.g., 1 driver + 5 crew in a double-row cab).
• Overall Dimensions: Around 8200×2500×3375 mm.
• Carrier Volume/Tank Capacity: Total capacity can vary, but a common configuration is around 6000L (e.g., 5000L Water + 1000L Foam, or all water). Some off-road models can have larger tanks up to 12,000L.
• Gross Vehicle Weight (GVW): Can be around 16,000 kg to 25,000 kg depending on the tank size.

• Fire Pump: Equipped with a powerful fire pump, such as a CB10/40, which indicates a rated flow of 40 L/s at 1.0 MPa.
• Fire Monitor (Water Cannon): Features a roof-mounted monitor (e.g., PS30 or PL32) with a significant range.
• Water Range: Typically ≥55 meters.
• Foam Range: Often ≥50 meters.
• Foam System: Includes a foam tank and a proportioning system to mix foam concentrate with water.
• PTO (Power Take-Off): Usually a full power, sandwich type PTO to drive the fire pump while the engine is running.

• Construction: The body generally consists of a firefighter's cabin, an equipment box (on both sides), a water/foam tank in the middle, and a pump room at the rear.
• Equipment Box: Designed with an overall frame structure, often featuring aluminum alloy rolling doors, and containing various fire and rescue tools.
• Engine: Powered by a suitable diesel engine (e.g., Cummins or Yuchai) with horsepower around 180 HP to 260 HP for a 6x6 chassis.
• Brake System: Typically a dual-circuit air pressure brake system with auxiliary features like an engine exhaust brake.
• Off-Road Capability: The 6x6 drive and robust chassis are crucial for accessing difficult-to-reach areas like forests, mountains, or industrial sites with poor road conditions.

The CLW Brand 6×6 Full Driver Fire Fighting Rescue Foam Water Tank Truck is a specialized vehicle. Based on common configurations and available product snippets for similar CLW models (specifically one with chassis DFL1160BX1V, which is a 6×6 vehicle often associated with this description), here are the typical product specifications.

Please note: Specifications can vary depending on the specific chassis used (e.g., Dongfeng, HOWO, etc.), the engine model, and the exact requirements of the end-user. This summary provides a representative set of technical details.

The CLW Brand 6×6 Full Driver Fire Fighting Rescue Foam Water Tank Truck is a heavy-duty, off-road capable vehicle primarily designed for fire suppression and rescue operations, particularly in challenging terrain.

Based on general specifications for this type of CLW fire truck, here are the key details:

• Drive Type: 6×6 (All-Wheel Drive), providing excellent off-road and maneuverability capabilities.
• Application: Fire Fighting, Rescue, Water/Foam Tanker.
• Chassis: Often based on robust commercial truck chassis like Dongfeng, HOWO, or others, configured for 6×6 driving.
• Engine: Typically a powerful diesel engine (e.g., Cummins, SINOTRUK) with varying horsepower and emission standards (e.g., Euro 3, Euro 5).
• Overall Dimensions: Approximate dimensions are around 8200 to 9500 mm (Length) ×2500 mm (Width) ×3300 to 3600 mm (Height).
• Crew Cab: Full Driver/Crew Cab (often a four-door, double-row configuration) designed to seat a total crew of about 5 or 6 firefighters (including the driver).

Tank Capacity:

• Water Tank: Typically around 5000 L to 6000 L (liters or kilograms).
• Foam Tank: Often included, with a capacity of a few hundred to over 1000 L (e.g., 450 L to 1200 L), depending on the specific model.
• Tank Material: High-quality Carbon Steel, Stainless Steel (e.g., SUS304), or PP Composite Material.

Fire Pump: A powerful fire pump is installed (often in a rear pump room), such as the Shanghai Xiongzhen CB10/40 or similar model.

• Rated Flow: Typically around 40 L/s (2400 L/min) at 1.0 MPa (normal pressure).

Fire Monitor (Water Cannon): Mounted on the roof for long-distance attack.

• Model: Examples include Chengdu West PS30 or similar.
• Rated Flow: Often around 30 L/s at 1.0 MPa.
• Range (Water): ≥55 m.
• Control: Manual or Electric/Remote Control.

• Foam Proportioning System: Used to mix foam concentrate with water.

Body Construction: Typically an overall frame structure, with the body composed of the crew cabin, the central tank body, equipment compartments on both sides, and a rear pump room.

Equipment Boxes: Located on the sides of the vehicle, often secured with durable Aluminum Alloy Rolling Doors and equipped with internal lighting.

Equipment: The truck is a rescue and firefighting vehicle, so it carries essential tools such as:

• Hoses, nozzles, water guns, suction pipes.
• Self-contained breathing apparatus (SCBA) storage.
• Rescue tools, first-aid supplies.
• Ladders (often a rear aluminum alloy flip ladder).

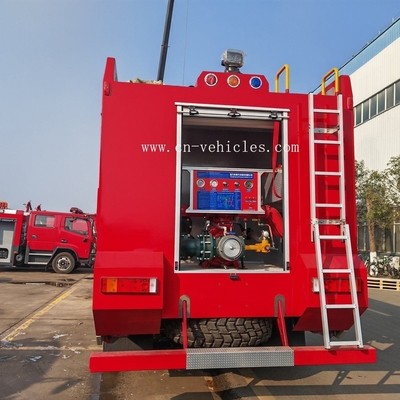

Pump Room: Located at the rear, enclosed with aluminum alloy rolling doors, housing the main fire pump, piping system, and control panel for pump operations.

• Warning Device: Long row of red warning lights installed on the cab roof, along with a siren.
• Lighting: Auxiliary lighting in the crew room, equipment boxes, and pump room. A fire searchlight is typically installed at the rear for scene illumination.

The CLW Brand 6x6 Full Drive Fire Fighting Rescue Foam Water Tank Truck is a specialized, heavy-duty emergency vehicle designed for challenging environments.

Its key feature is the 6x6 full-wheel drive chassis, which provides superior traction and off-road capability, combined with a dual water and foam fire suppression system and rescue equipment.

The applications for this highly versatile truck are:

1. Off-Road and Difficult Terrain Firefighting
   The 6x6 (six-wheel drive) configuration is the primary factor that defines its application, allowing it to operate where standard city fire engines cannot.
2. Forest and Wildland Fires: Its high ground clearance and all-wheel drive enable it to travel through soft earth, rough terrain, and unpaved roads to reach and contain fires in remote forests or wilderness-urban interface (WUI) areas.
3. Desert and Remote Regions: It is ideal for fighting fires in sandy, muddy, or mountainous regions where reliable traction is essential.
4. Rural and Water-Scarce Areas: The large tank capacity allows it to transport a substantial water and foam supply to areas lacking fire hydrants or reliable municipal water systems.
5. Industrial and Petrochemical Facilities
   The foam tank and high-capacity pump system make it essential for industrial sites where flammable liquids pose the greatest risk.
6. Oil and Gas Refineries/Terminals: Foam is the most effective medium for smothering and extinguishing Class B fires (flammable liquids like gasoline, oil, and chemicals).
7. Chemical Plants: Used to tackle fires involving chemicals, plastics, or other materials that require foam or a specialized extinguishing agent.
8. Power Plants and Large Factories: It can quickly apply large volumes of foam/water mixture to protect high-value equipment and suppress large-scale industrial fires.
9. Airport and Aircraft Rescue and Fire Fighting (ARFF) Support
   Trucks with a 6x6 configuration and foam capability are widely used at airports, particularly for incidents off the main runway.
10. Aircraft Incidents: Used to rapidly suppress large fuel fires (Class B) on or near aircraft, which is a key mandate for Airport Rescue and Fire Fighting (ARFF) teams. The powerful roof-mounted monitor is crucial for long-distance attack.
11. Heavy-Duty Rescue Operations
    Being a Rescue Foam Water Tank Truck, it carries a wide range of additional tools beyond standard firefighting gear.
12. Vehicle Extrication: Carries specialized cutting and spreading tools (e.g., Jaws of Life) for freeing trapped victims in serious traffic accidents.
13. Technical Rescue: Equipped with lighting systems, winches, generators, and various dismantling tools to support operations in structural collapse, trench, or other complex rescue scenarios.
14. Emergency Water Supply/Support: Can function as a water tender to relay water to other pumpers or supply an emergency water source during major incidents.

Chengli Special Automobile Co., Ltd. (often referred to as CLW Group or Chengli) is one of the largest and most prominent special-purpose vehicle manufacturers in China.

Established in Sep. 2004,Chengli Special Automobile Co., Ltd is an important branch of CLW group with registered capital 100,000,000 RMB(14 millions US Dollars) and total capital 6,000,000,000(840 millions US Dollars).

Trucks from Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mogolia, Philippine, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, uzbickstan, Kyrghyzstan, Tanzania, Zambia, Nigeria, Austrilia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and so on.
