| Brand Name: | HOWO |
| Model Number: | CLW |
| MOQ: | 1 unit |
| Price: | 15000-35000 per unit |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 10unit per month |

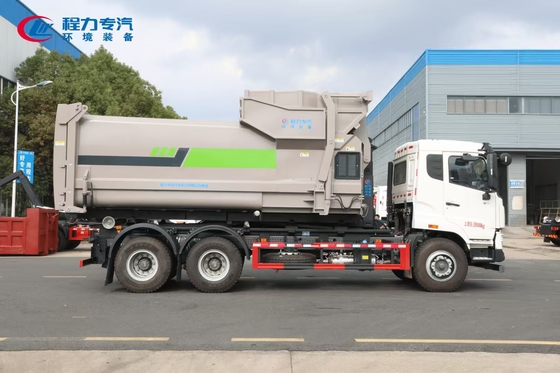

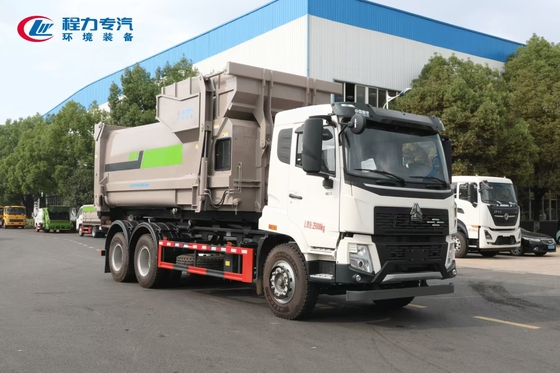

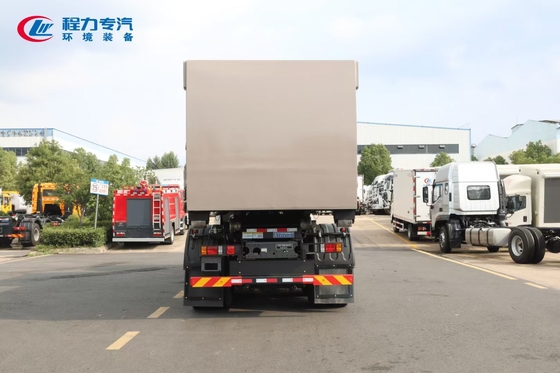

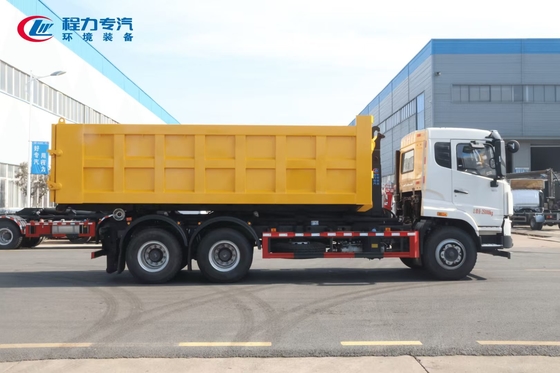

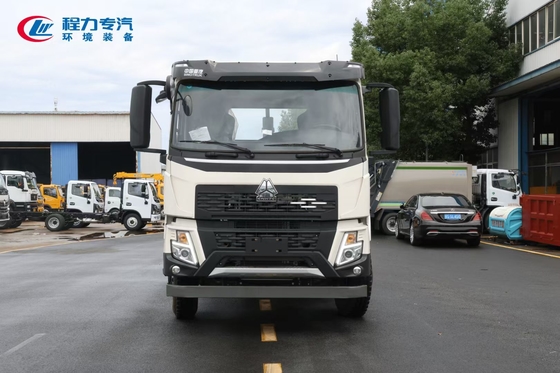

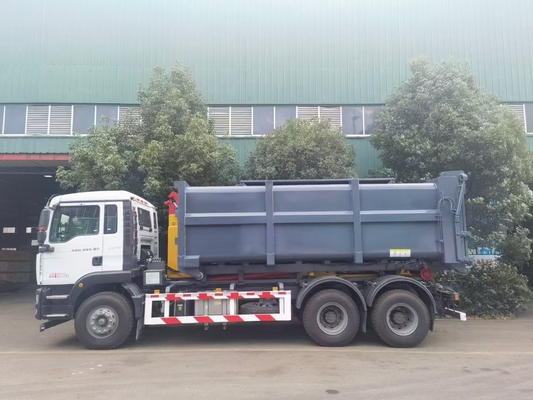

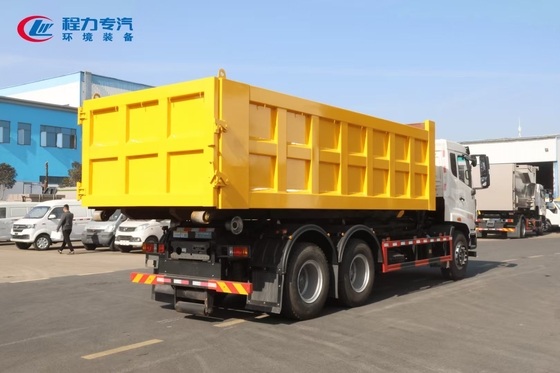

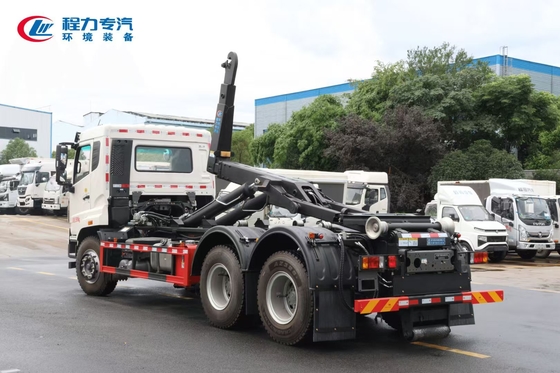

HOWO 3 Axle Hook Lift Abrol Truck With 3 Ton Folding Ipsilon xcmg Crane For Construction Garbage
HOWO is a brand of trucks produced by Sinotruk, a major Chinese heavy-duty truck manufacturer. They are known for producing a wide range of commercial vehicles, including those for construction, sanitation, and logistics.

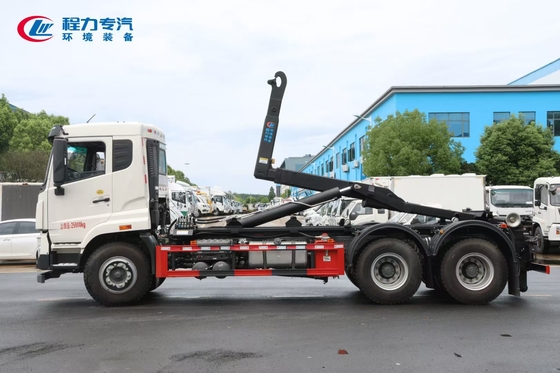

A "3 Axle Hook Lift Abrol Truck" is a type of vehicle that combines a truck chassis with a hydraulic hook lift system. This system allows the truck to quickly and efficiently pick up, transport, and drop off different containers or bodies. The "3 Axle" designation refers to the truck's configuration, which typically means a 6x4 or 6x2 drive system, providing a good balance of load capacity and maneuverability.
| Specifications for HOWO Hook Lift Garbage Truck | |||
| Cabin | Driving Model: 6×4 Left Hand Drive or Right Hand Drive | ||
| HW76 cabin with one sleeper, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with 4-point support fully floating suspension + shock absorber. | |||
| Condition: brand new | |||
| Engine | Model: SINOTRUK WD615.87 | ||
|
Type: Diesel 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling. Emission Standard: Euro II |
|||
| Displacement: 9.726L | |||
| Transmission | HW15710 manual gearbox, 10F & 2R | ||
| Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) | |||
| Steering | power steering, model 8118, hydraulic steering with power assitance | ||
| Front Axle | HF9, 1×9000 KGS Steering with doubleT-cross section beam |
||
|
Rear Axle |
HC16, 2×16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. Ratio: 4.8 |
||
| Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
||
|
Electrics |
Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
||
| Tires | 315/80R22.5 or 12R22.5, tubeless tires with one spare tire. Optional: 12.00R20, radial tires |
||
| Fuel Tank | 400 Liters | ||
| Overall Dimension | 9500*2550*3400 mm | ||
